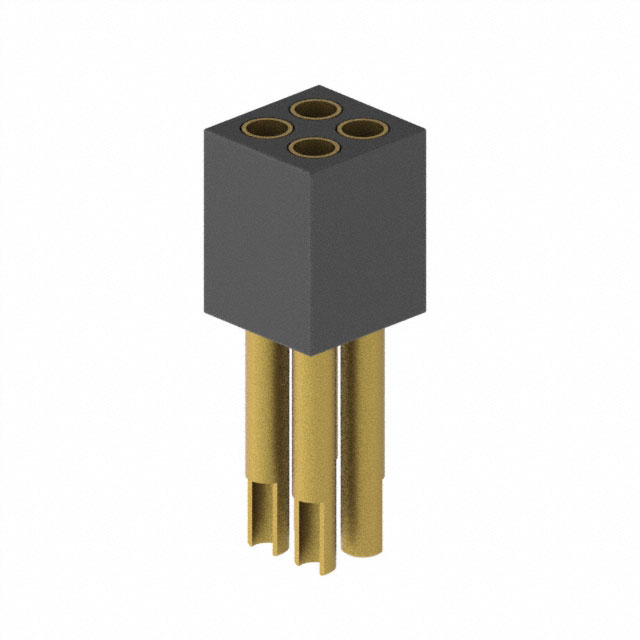

853-13-004-10-003000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

853-13-004-10-003000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.05 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	853-13-004-10-003000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.191 in
Contact Length - Post	4.85 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	3.78 mm
Insulation Height [z]	0.149 "
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm

853-13 Series

Part	Fastening Type	Connector Type	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Shape	Contact Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Insulation Color	Contact Finish - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Mill-Max Manufacturing Corp. 853-13-004-10-003000	Push-Pull	Receptacle	Thermoplastic	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0	0.05 in	1.27 mm	4	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 853-13-002-10-003000	Push-Pull	Receptacle	Thermoplastic	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0			2	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 853-13-098-10-003000	Push-Pull	Socket	Glass Filled Nylon 4/6 Polyamide (PA46)	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0	0.05 in	1.27 mm	98	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	3 µin	0.076 µm
Mill-Max Manufacturing Corp. 853-13-058-10-003000	Push-Pull	Socket	Glass Filled Nylon 4/6 Polyamide (PA46)	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0	0.05 in	1.27 mm	58	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	3 µin	0.076 µm
Mill-Max Manufacturing Corp. 853-13-100-10-003000	Push-Pull	Socket	Glass Filled Nylon 4/6 Polyamide (PA46)	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0	0.05 in	1.27 mm	100	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	3 µin	0.076 µm
Mill-Max Manufacturing Corp. 853-13-010-10-003000	Push-Pull	Receptacle	Thermoplastic	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0	0.05 in	1.27 mm	10	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 853-13-006-10-003000	Push-Pull	Receptacle	Thermoplastic	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0	0.05 in	1.27 mm	6	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 853-13-008-10-003000	Push-Pull	Receptacle	Thermoplastic	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0	0.05 in	1.27 mm	8	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 853-13-040-10-003000	Push-Pull	Socket	Glass Filled Nylon 4/6 Polyamide (PA46)	3.78 mm	0.149 "	10 çin	0.25 çm	UL94 V-0	0.05 in	1.27 mm	40	Circular	Female Socket	All	0.191 in	4.85 mm	Gold	0.05 in	1.27 mm	Beryllium Copper	Black	Gold	2	-55 °C	125 °C	3 A	Through Hole	3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.97
		10	$ 6.31
		100	$ 5.52
		500	$ 4.65
		1000	$ 4.07

Description

General part information

853-13 Series

4 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
