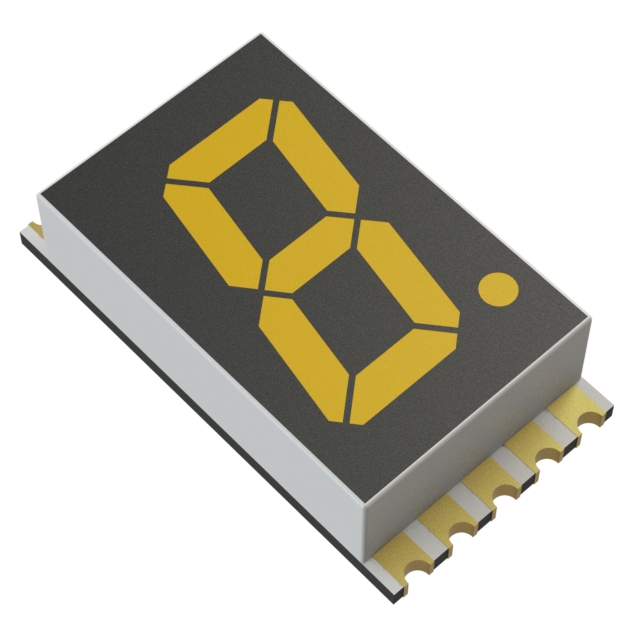

INND-SS40AAG

Active

Inolux

DISPLAY 7SEG 0.4" SGL AMB 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

INND-SS40AAG

Active

Inolux

DISPLAY 7SEG 0.4" SGL AMB 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	INND-SS40AAG

Color	Amber
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	13 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	70 mW
Size / Dimension [x]	3.15 mm
Size / Dimension [x]	0.124 in
Size / Dimension [y]	9.2 mm
Size / Dimension [y]	0.362 in
Size / Dimension [z]	0.591 "
Size / Dimension [z]	15 mm
Voltage - Forward (Vf) (Typ)	2 V

INND-SS40 Series

Part	Display Type	Color	Millicandela Rating	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size [custom]	Power Dissipation (Max) [Max]	Common Pin	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Test	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Wavelength - Peak
Inolux INND-SS40AAG	7-Segment	Amber	13 mcd	1	10.16 mm	0.4 in	70 mW	Common Anode	10-SMD No Lead	2 V	20 mA	3.15 mm	0.591 "	9.2 mm	0.124 in	0.362 in	15 mm
Inolux INND-SS40AAB	7-Segment	Amber	13 mcd	1	10.16 mm	0.4 in	70 mW	Common Anode	10-SMD No Lead	2 V	20 mA	3.15 mm	0.591 "	9.2 mm	0.124 in	0.362 in	15 mm
Inolux INND-SS40YAB	7-Segment	Yellow	13 mcd	1	10.16 mm	0.4 in	70 mW	Common Anode	10-SMD No Lead	2 V	20 mA	3.15 mm	0.591 "	9.2 mm	0.124 in	0.362 in	15 mm	592 nm
Inolux INND-SS40DRCG	7-Segment	Red	4 mcd	1	10.16 mm	0.4 in	70 mW	Common Cathode	10-SMD No Lead	2 V	20 mA	3.15 mm	0.591 "	9.2 mm	0.124 in	0.362 in	15 mm	660 nm
Inolux INND-SS40GCG	7-Segment	Green	4 mcd	1	10.16 mm	0.4 in	114 mW	Common Cathode	10-SMD No Lead	3.2 V	20 mA	3.15 mm	0.591 "	9.2 mm	0.124 in	0.362 in	15 mm	525 nm
Inolux INND-SS40GAB	7-Segment	Green	4 mcd	1	10.16 mm	0.4 in	114 mW	Common Anode	10-SMD No Lead	3.2 V	20 mA	3.15 mm	0.591 "	9.2 mm	0.124 in	0.362 in	15 mm	525 nm
Inolux INND-SS40GCB	7-Segment	Green	4 mcd	1	10.16 mm	0.4 in	114 mW	Common Cathode	10-SMD No Lead	3.2 V	20 mA	3.15 mm	0.591 "	9.2 mm	0.124 in	0.362 in	15 mm	525 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5000	$ 0.60

Description

General part information

INND-SS40 Series

Display Modules - LED Character and Numeric Amber 7-Segment 1 Character Common Anode 2V 20mA 0.591" H x 0.362" W x 0.124" D (15.00mm x 9.20mm x 3.15mm) 10-SMD, No Lead
