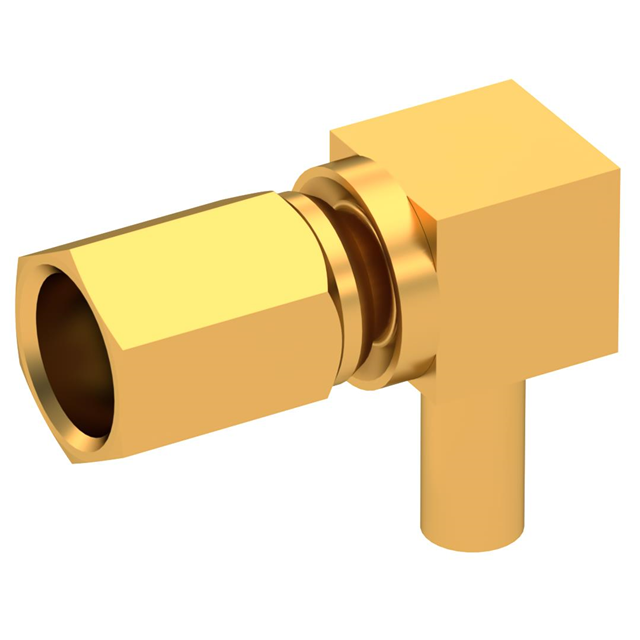

SSMC F RA NA SD .47

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC F RA NA SD .47

Technical Specifications

Parameters and characteristics for this part

Specification	7105-1561-011

Body Finish	Gold
Body Material	Brass
Cable Group	M17/151 (0.047" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Dielectric Material	Cable Group	Body Finish	Shield Termination	Frequency - Max [Max]	Connector Style	Connector Type	Impedance	Center Contact Plating	Housing Color	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Voltage Rating	Mounting Type	Number of Ports	Contact Termination	Center Contact Material
Radiall USA, Inc. 7105-1561-011	Polytetrafluoroethylene (PTFE)	M17/151 (0.047" Semi Rigid)	Gold	Solder	12.4 GHz	SSMC	Female Socket Plug	50 Ohms	Gold	Gold	500	-65 ░C	165 °C	Brass	250 VDC	Free Hanging (In-Line) Right Angle	1	Solder	Beryllium Copper
Radiall USA, Inc. 7105-1561-010	Polytetrafluoroethylene (PTFE)	RG-405 (.085" Semi Rigid)	Gold	Solder	12.4 GHz	SSMC	Female Socket Plug	50 Ohms	Gold	Gold	500	-65 ░C	165 °C	Brass	250 VDC	Free Hanging (In-Line) Right Angle	1	Solder	Beryllium Copper
