UPM1V681MHD1TO

NICHICON

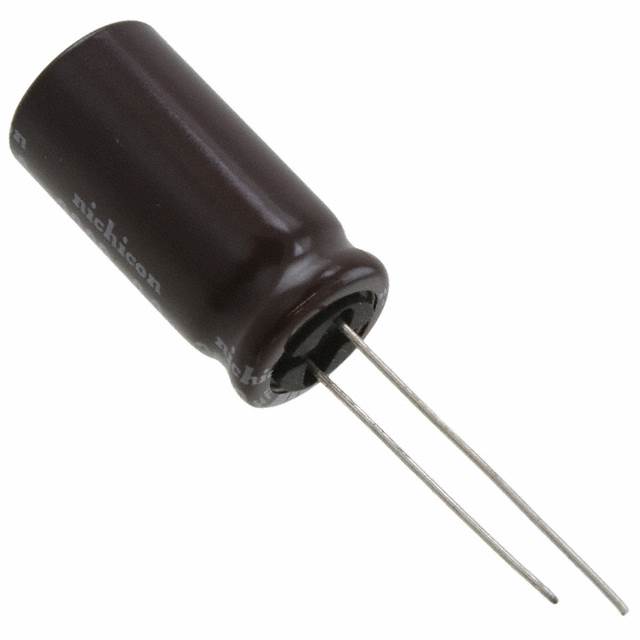

CAPACITOR: ELECTROLYTIC; LOW ESR; THT; 680UF; 35VDC; Ø12.5X25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiniature Type Taping Spec Datasheet

UPM1V681MHD1TO

NICHICON

CAPACITOR: ELECTROLYTIC; LOW ESR; THT; 680UF; 35VDC; Ø12.5X25MM

Deep-Dive with AI

DocumentsMiniature Type Taping Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPM1V681MHD1TO

Applications	Automotive
Capacitance	680 µF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Impedance	36 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ratings	AEC-Q200
Ripple Current @ High Frequency	1.7 A
Ripple Current @ Low Frequency	1.41 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	35 V

upm Series

Part	Applications	Capacitance	Impedance	Lifetime @ Temp.	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Package / Case	Voltage - Rated	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
NICHICON UPM1C272MHD6TN	Automotive	2700 µF	30 mOhms	5000 Hrs	AEC-Q200	0.63 in	16 mm	Polar	Radial Can	16 V	2.19 A	7.5 mm	0.295 in	105 ░C	-55 °C	1.97 A	20 %	Through Hole	1.063 in	27 mm
NICHICON UPM1J181MHD6TN	Automotive	180 çF	80 mOhms	5000 Hrs	AEC-Q200	0.63 in	16 mm	Polar	Radial Can	63 V	1.05 A	7.5 mm	0.295 in	105 ░C	-55 °C	750 mA	20 %	Through Hole	0.669 in	17 mm
NICHICON UPM1V271MHD6	Automotive	270 µF	80 mOhms	5000 Hrs	AEC-Q200	0.492 in	12.5 mm	Polar	Radial Can	35 V	920 mA	5 mm	0.197 in	105 ░C	-55 °C	690 mA	20 %	Through Hole	0.669 in	17 mm
NICHICON UPM1V681MHD1TO	Automotive	680 µF	36 mOhms	5000 Hrs	AEC-Q200	0.492 in	12.5 mm	Polar	Radial Can	35 V	1.7 A	5 mm	0.197 in	105 ░C	-55 °C	1.41 A	20 %	Through Hole	1.063 in	27 mm
NICHICON UPM1A821MHD6	Automotive	820 µF	80 mOhms	5000 Hrs	AEC-Q200	0.492 in	12.5 mm	Polar	Radial Can	10 V	920 mA	5 mm	0.197 in	105 ░C	-55 °C	780 mA	20 %	Through Hole	0.669 in	17 mm
NICHICON UPM1V222MHD6	Automotive	2200 µF	23 mOhms	5000 Hrs	AEC-Q200	0.709 "	18 mm	Polar	Radial Can	35 V	2.72 A	7.5 mm	0.295 in	105 ░C	-55 °C	2.44 A	20 %	Through Hole
NICHICON UPM1V681MHD	Automotive	680 µF	36 mOhms	5000 Hrs	AEC-Q200	0.492 in	12.5 mm	Polar	Radial Can	35 V	1.7 A	5 mm	0.197 in	105 ░C	-55 °C	1.41 A	20 %	Through Hole	1.063 in	27 mm
NICHICON UPM1A272MHD6TN	Automotive	2700 µF	35 mOhms	5000 Hrs	AEC-Q200	0.63 in	16 mm	Polar	Radial Can	10 V	1.74 A	7.5 mm	0.295 in	105 ░C	-55 °C	1.56 A	20 %	Through Hole	0.866 in	22 mm
NICHICON UPM0J122MHD6TO	Automotive	1.2 mF	75 mOhms	5000 Hrs	AEC-Q200	0.492 in	12.5 mm	Polar	Radial Can	6.3 V	950 mA	5 mm	0.197 in	105 ░C	-55 °C		20 %	Through Hole	0.669 in	17 mm
NICHICON UPM1A102MHD6TO	Automotive	1000 µF	65 mOhms	5000 Hrs	AEC-Q200	0.492 in	12.5 mm	Polar	Radial Can	10 V	1.04 A	5 mm	0.197 in	105 ░C	-55 °C	900 mA	20 %	Through Hole	0.669 in	17 mm
