XBP1011-G

Active

Torex Semiconductor Ltd

TVS DIODE 5VWM 9VC SOD523P

Search across all available documentation for this part.

Active

Torex Semiconductor Ltd

TVS DIODE 5VWM 9VC SOD523P

Technical Specifications

Parameters and characteristics for this part

Specification	XBP1011-G

Applications	General Purpose
Capacitance @ Frequency	110 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C

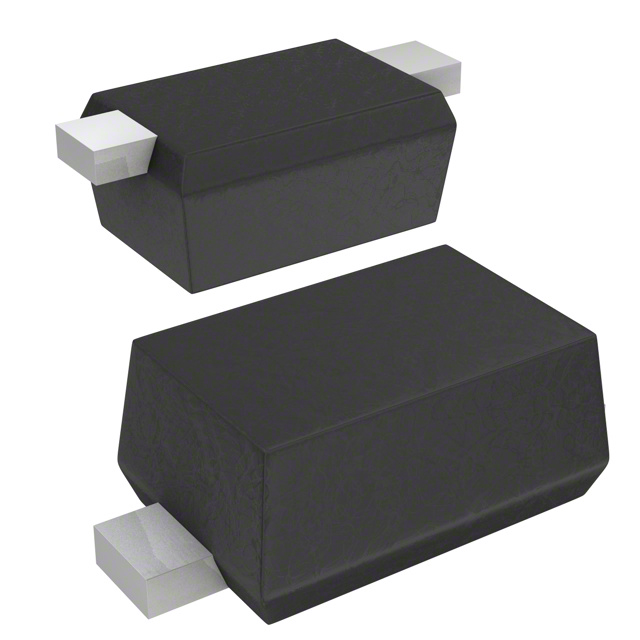

Package / Case	SC-79, SOD-523
Power - Peak Pulse	120 W
Power Line Protection	False
Supplier Device Package	SOD-523P
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	9 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Supplier Device Package	Type	Mounting Type	Power Line Protection	Operating Temperature [Max]	Operating Temperature [Min]	Unidirectional Channels [custom]	Package / Case	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Applications
Torex Semiconductor Ltd XBP1011-G	SOD-523P	Zener	Surface Mount		150 °C	-50 °C	1	SC-79 SOD-523	5 V	6 V	120 W	110 pF	5 A	9 V	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523P
