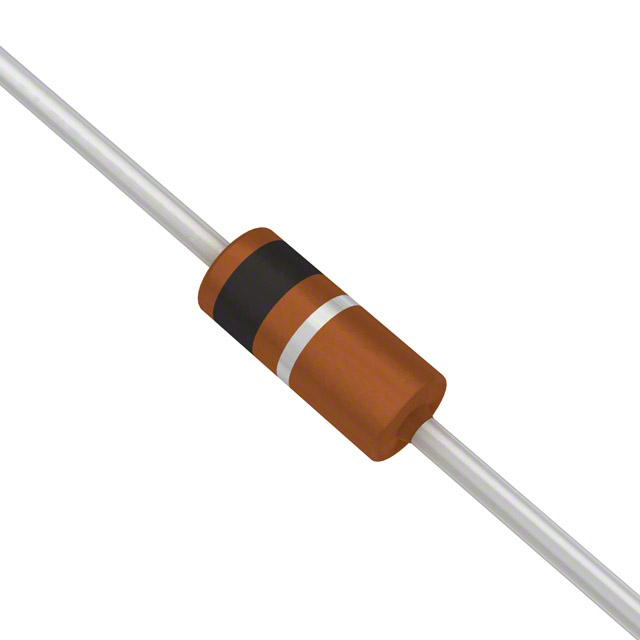

1N4148-P-TAP

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 75V 150MA DO35

Deep-Dive with AI

Search across all available documentation for this part.

1N4148-P-TAP

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 75V 150MA DO35

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148-P-TAP

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	5 µA
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	Axial, DO-35, DO-204AH
Qualification	AEC-Q101
Reverse Recovery Time (trr)	8 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	DO-204AH (DO-35)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	1 V

1N4148 Series

Part	Package / Case	Current - Average Rectified (Io)	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Mounting Type	Supplier Device Package	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Technology	Speed	Speed	Grade	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If	Qualification	Operating Temperature - Junction [Min]
Vishay General Semiconductor - Diodes Division 1N4148W-E3-18	SOD-123	150 mA	4 pF	4 ns	Surface Mount	SOD-123	150 ¯C	75 V	100 çA	Standard	Any Speed	200 mA
Vishay General Semiconductor - Diodes Division 1N4148-P-TAP	Axial DO-204AH DO-35	150 mA	4 pF	8 ns	Through Hole	DO-204AH (DO-35)		75 V	5 µA	Standard	Any Speed	200 mA	Automotive	175 °C	1 V	AEC-Q101
Vishay General Semiconductor - Diodes Division 1N4148W-HG3-18	SOD-123	150 mA	4 pF	4 ns	Surface Mount	SOD-123	150 °C	75 V	100 µA	Standard	Any Speed	200 mA	Automotive			AEC-Q101
Vishay General Semiconductor - Diodes Division 1N4148WS-HG3-08	SC-76 SOD-323	150 mA		4 ns	Surface Mount	SOD-323		100 V	100 µA	Standard	Any Speed	200 mA	Automotive	150 °C		AEC-Q101	-55 °C
Vishay General Semiconductor - Diodes Division 1N4148WS-HG3-18	SC-76 SOD-323	150 mA		4 ns	Surface Mount	SOD-323		100 V	100 µA	Standard	Any Speed	200 mA	Automotive	150 °C		AEC-Q101	-55 °C
Vishay General Semiconductor - Diodes Division 1N4148W-HE3-08	SOD-123	150 mA		4 ns	Surface Mount	SOD-123		75 V	100 µA	Standard	Any Speed	200 mA	Automotive	150 °C		AEC-Q101	-55 °C
Vishay General Semiconductor - Diodes Division 1N4148WS-E3-18	SC-76 SOD-323	150 mA		4 ns	Surface Mount	SOD-323		75 V	100 µA	Standard	Any Speed	200 mA		150 °C			-55 °C
Vishay General Semiconductor - Diodes Division 1N4148W-E3-08	SOD-123	150 mA	4 pF	4 ns	Surface Mount	SOD-123	150 °C	75 V	100 µA	Standard	Any Speed	200 mA
Vishay General Semiconductor - Diodes Division 1N4148W-HE3-18	SOD-123	150 mA		4 ns	Surface Mount	SOD-123		75 V	100 µA	Standard	Any Speed	200 mA	Automotive	150 °C		AEC-Q101	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1N4148 Series

Diode 75 V 150mA Through Hole DO-204AH (DO-35)
