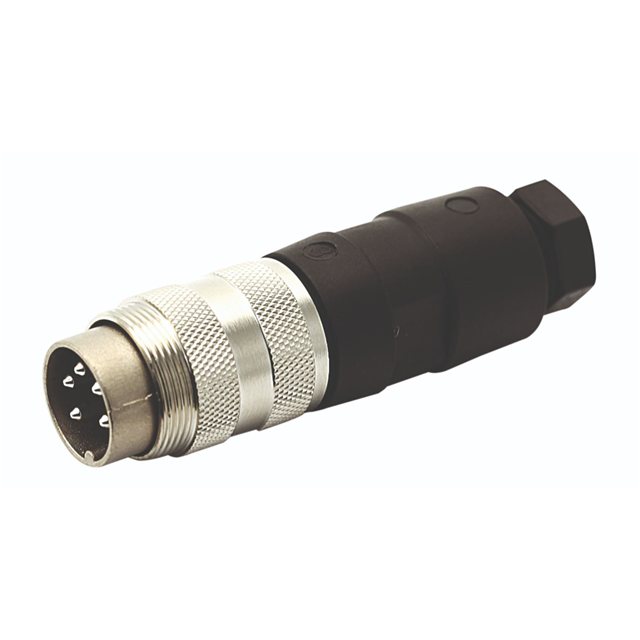

T 3504 554

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 8POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 8POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3504 554

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black, Silver
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-8
Shielding	Shielded
Type	For Male Pins

Part	Note	Contact Type	Shell Finish	Shell Material	Ingress Protection	Housing Color	Number of Positions	Contact Shape	Shielding	Shell Size - Insert	Contact Size	Features	Mounting Type	Insert Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Type	Connector Type	Material Flammability Rating	Color	Current Rating (Amps)	Voltage Rating	Primary Material	Contact Finish - Mating
Amphenol Tuchel Industrial T 3504 554	Contacts Not Included	Crimp	Nickel	Die Cast	IP40	Black Silver	8	Circular	Shielded	M16-8	1.5 mm	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Thermoplastic	Keyed	100 °C	-40 °C	For Male Pins	Plug Housing	UL94 V-0
Amphenol Tuchel Industrial T 3504 551	Contacts Not Included	Crimp	Nickel	Die Cast	IP40	Silver	8	Circular	Shielded	M16-8	1.5 mm	Cable Clamp Coupling Nut Strain Relief	Free Hanging (In-Line)	Thermoplastic	Keyed	100 °C	-40 °C	For Male Pins	Plug Housing	UL94 V-0
Amphenol Tuchel Industrial T 3504 028			Nickel	Die Cast	IP40		8		Shielded	M16-8		Cable Clamp Strain Relief	Free Hanging (In-Line)		Keyed	100 °C	-40 °C		Male Pins Plug		Silver	7 A	250 VDC	Metal	Gold
Amphenol Tuchel Industrial T 3504 004			Nickel	Die Cast	IP40		8		Shielded	M16-8		Cable Clamp Strain Relief	Free Hanging (In-Line)		Keyed	100 °C	-40 °C		Male Pins Plug		Silver	7 A	250 VDC	Metal	Silver
Amphenol Tuchel Industrial T 3504 002			Nickel	Die Cast	IP40		8		Shielded	M16-8		Cable Clamp Strain Relief	Free Hanging (In-Line)		Keyed	100 °C	-40 °C		Male Pins Plug		Silver	7 A	250 VDC	Metal	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
