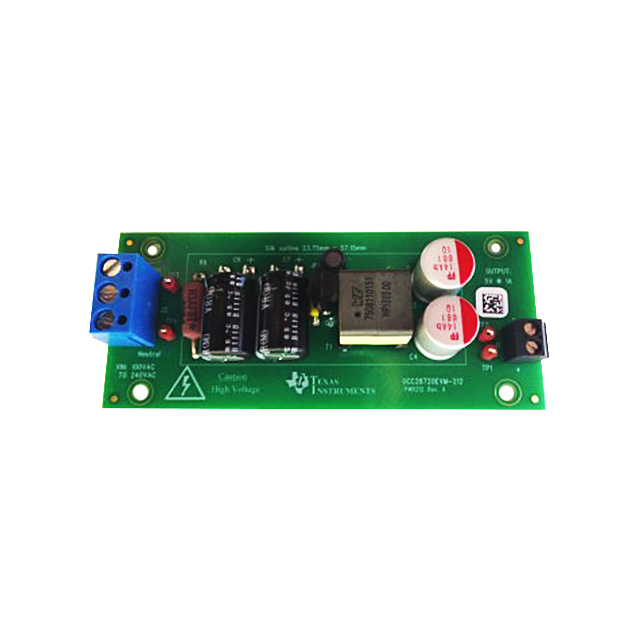

UCC28720EVM-212

Active

Texas Instruments

EVAL MODULE FOR UCC28720

Search across all available documentation for this part.

Active

Texas Instruments

EVAL MODULE FOR UCC28720

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Mounting Type	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Frequency - Switching [Max]	Frequency - Switching [Min]	Fault Protection	Operating Temperature [Min]	Operating Temperature [Max]	Internal Switch(s)	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Output Isolation	Voltage - Start Up	Utilized IC / Part	Voltage - Output	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Power - Output	Board Type	Outputs and Type	Outputs and Type	Regulator Topology	Supplied Contents
Texas Instruments UCC28720D	Flyback	Surface Mount	7	8-SOIC	3.9 mm	0.154 in	80 kHz	650 Hz	Current Limiting Over Voltage	-40 °C	125 ¯C		35 V	9 V	7-SOIC	Isolated	21 V
Texas Instruments UCC28720EVM-212																		UCC28720	5 V	AC/DC Primary Side	240 VAC	100 VAC	1 A	5 W	Fully Populated	Isolated	1	Flyback	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.80

General part information

UCC28720 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
