ZN2PD2-63A-N+
ActiveMINI-CIRCUITS
PWR DIV / N / ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZN2PD2-63A-N+
ActiveMINI-CIRCUITS
PWR DIV / N / ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZN2PD2-63A-N+ |
|---|---|
| Frequency [Max] | 6 GHz |
| Frequency [Min] | 350 MHz |
| Insertion Loss | 0.9 dB |
| Package / Case | N-Type In-Line Module |
| Size / Dimension [x] | 3.25 in |
| Size / Dimension [x] | 82.55 mm |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 23.11 mm |
| Size / Dimension [z] | 0.91 in |
| Specifications | 1.4 VSWR |
| Specifications [Max] | 5 ° |
| Specifications [Min] | 18 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 182.08 | |
| 10 | $ 166.90 | |||
| 25 | $ 163.86 | |||
| 50 | $ 163.43 | |||
Description
General part information
ZN2PD2-63A Series

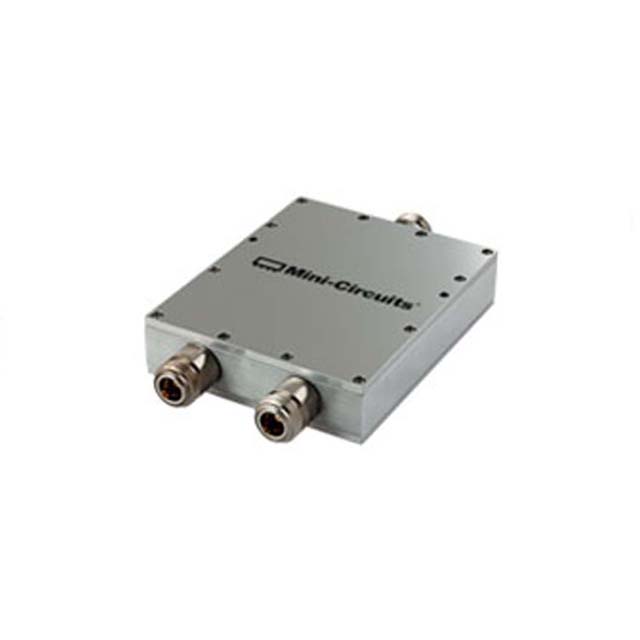

RF Power Divider 350 MHz ~ 6 GHz Isolation (Min) 18dB, 1.4 VSWR (Typ), 5° Imbalance (Max) N-Type In-Line Module
