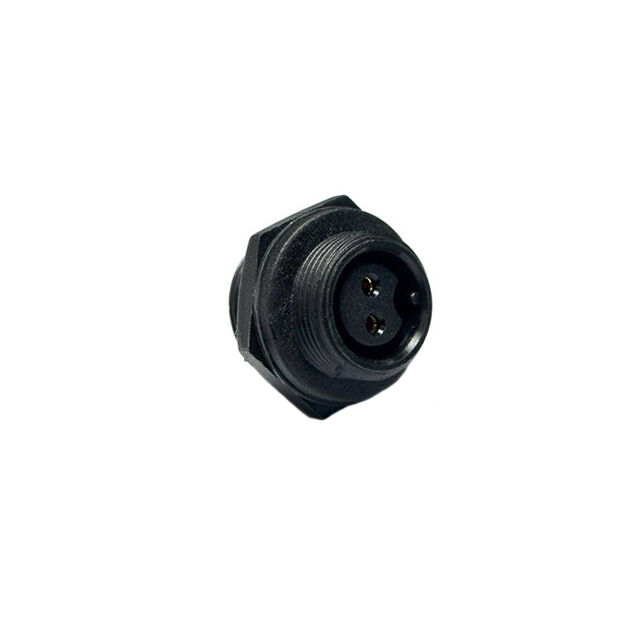

ABD-02RMFS-LC7001

Active

Amphenol LTW

STANDARD STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

STANDARD STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ABD-02RMFS-LC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ingress Protection	Shell Material	Number of Positions	Current Rating (Amps)	Contact Material	Mounting Feature	Shielding	Insert Material	Connector Type	Primary Material	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Shell Size - Insert
Amphenol LTW ABD-02RMFS-LC7001	Black	250 VAC	-40 °C	105 ░C	Keyed	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	2	5 A	Copper Alloy	Bulkhead - Rear Side Nut	Unshielded	Polyamide (PA) Nylon Glass Filled	Receptacle Female Sockets	Plastic	Gold	Bayonet Lock	UL94 V-0	B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 4.26

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
