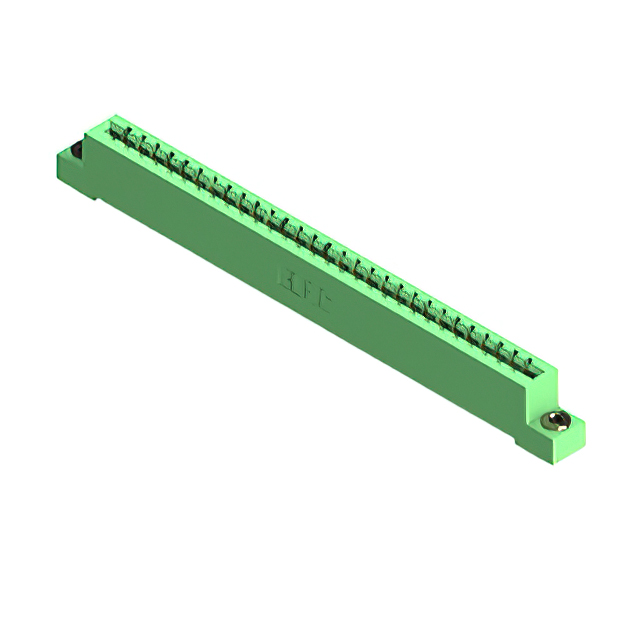

837-029-541-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 29POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-029-541-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 29POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-029-541-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 29 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
837-029 Series
...
| Part | Card Type | Number of Positions | Number of Positions/Bay/Row | Gender | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Read Out | Color | Mounting Type | Material - Insulation | Termination Rows | Pitch [x] | Pitch [x] | Termination | Flange Feature | Contact Material | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Solder | Side Mount Opening Unthreaded | Copper Alloy | 3.25 mm | 0.128 in | ||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole Right Angle | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Solder | Flush Mount Top Opening Unthreaded | Copper Alloy | 3.96 mm | 0.156 in | ||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Wire Wrap | Floating Bobbin Flush Mount | Copper Alloy | 2.95 mm | 0.116 in | ||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Solder | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Solder Eyelet(s) | M3 Threaded Insert Top Mount Opening | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Solder | Side Mount Opening Unthreaded | Copper Alloy | 3.25 mm | 0.128 in | ||
EDAC Inc. | Non Specified - Single Edge | 29 | 29 | Female | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Green | Through Hole | Diallyl Phthalate (DAP) | 1 | 0.156 in | 3.96 mm | Wire Wrap | M3 Threaded Insert Top Mount Opening | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-029 Series
29 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
