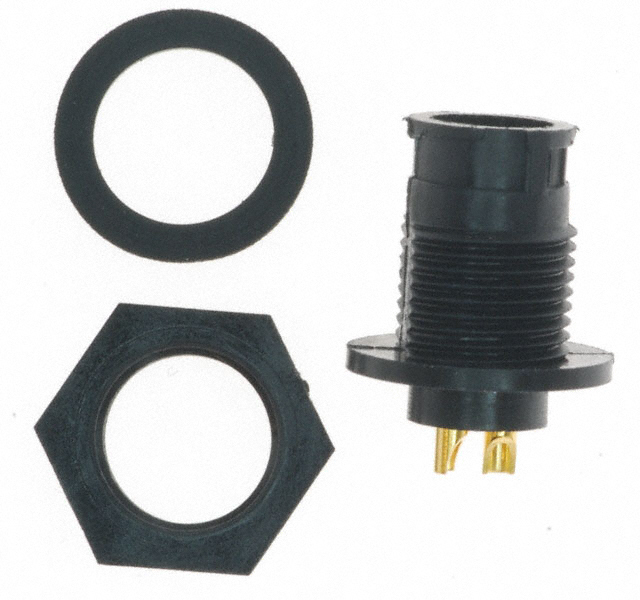

17282-2SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	17282-2SG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Shielding	Contact Material	Primary Material	Color	Material Flammability Rating	Mounting Feature	Voltage Rating	Orientation	Fastening Type	Connector Type	Ingress Protection	Number of Positions	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Mating
Conxall/Switchcraft 17282-2SG-300	Unshielded	Copper Alloy	Plastic	Black	UL94 HB	Bulkhead - Front Side Nut	600 VAC	Keyed	Bayonet Lock	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	2	Data Industrial Instrumentation Medical	85 °C	-40 °C	7.5 A	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
