T62-1-65-0.16

Active

t-Global Technology

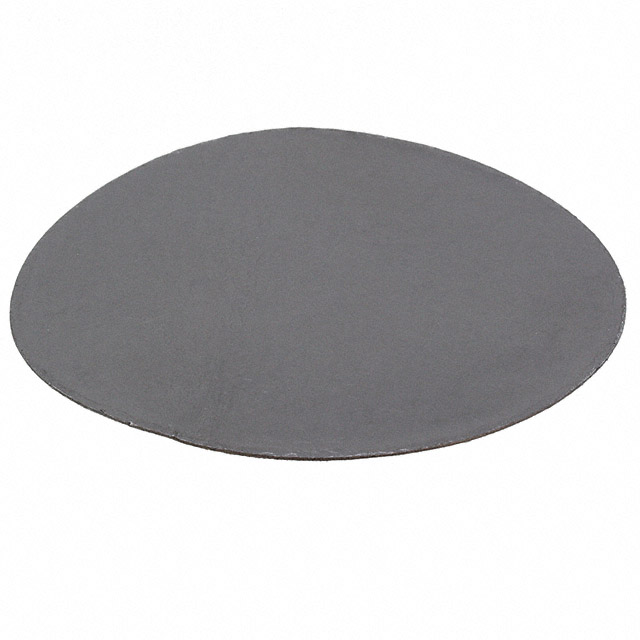

THERM PAD 65MM DIA W/ADH BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDie-Cut Tolerence Guide Datasheet +1

T62-1-65-0.16

Active

t-Global Technology

THERM PAD 65MM DIA W/ADH BLACK

Deep-Dive with AI

DocumentsDie-Cut Tolerence Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T62-1-65-0.16

Adhesive	Adhesive - One Side
Color	Black
Material	Graphite
Outline [diameter]	65 mm
Shape	Round
Shelf Life	12 Months
Shelf Life Start	Date of Purchase
Thermal Conductivity	15 W/m-K
Thickness	0.16 mm
Thickness	0.0063 "
Type	Graphite-Pad, Sheet

T62-1 Series

Part	Shelf Life Start	Shelf Life	Outline [y]	Outline [x]	Material	Type	Thermal Conductivity	Adhesive	Thickness	Thickness	Shape	Color	Outline [diameter]
t-Global Technology T62-1-15-15-0.16	Date of Purchase	12 Months	15 mm	15 mm	Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Square	Black
t-Global Technology T62-1-50-0.16	Date of Purchase	12 Months			Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Round	Black
t-Global Technology T62-1-100-100-0.16	Date of Purchase	12 Months	100 mm	100 mm	Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Square	Black
t-Global Technology T62-1-65-0.16	Date of Purchase	12 Months			Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Round	Black	65 mm
t-Global Technology T62-1-150-150-0.16	Date of Purchase	12 Months	150 mm	150 mm	Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Square	Black
t-Global Technology T62-1-79.4-43.69-0.16	Date of Purchase	12 Months	43.69 mm	79.4 mm	Graphite	Graphite-Pad Sheet	15 W/m-K		0.16 mm	0.0063 "	Rectangular	Black
t-Global Technology T62-1-24-24-0.16	Date of Purchase	12 Months	24 mm	24 mm	Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Square	Black
t-Global Technology T62-1-310-310-0.16	Date of Purchase	12 Months	310 mm	310 mm	Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Square	Black
t-Global Technology T62-1-40-40-0.16	Date of Purchase	12 Months	40 mm	40 mm	Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Square	Black
t-Global Technology T62-1-20-20-0.16	Date of Purchase	12 Months	20 mm	20 mm	Graphite	Graphite-Pad Sheet	15 W/m-K	Adhesive - One Side	0.16 mm	0.0063 "	Square	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 0.92
