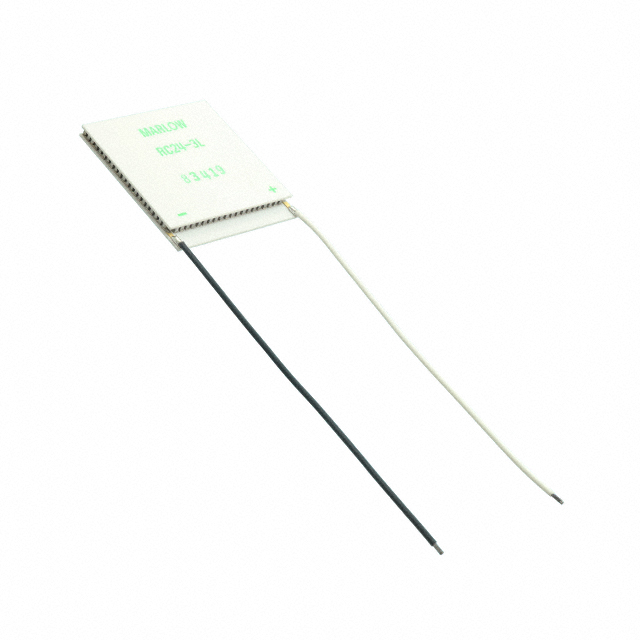

RC24-3-01L

Active

Marlow Industries, Inc.

TEM 40X40X3.61MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 40X40X3.61MM

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Max [Max]	Current - Max [Max]	Qmax @ Th	Height [z]	Operating Temperature	Resistance	Features	Delta Tmax @ Th	Number of Stages	Size / Dimension [y]	Size / Dimension [x]
Marlow Industries, Inc. RC24-3-01LS	26.7 V	2.9 A	49.6 W	3.61 mm	130 °C	8.06 Ohms	Lapped Lead Wires Sealed	60 °C	1	40.01 mm	44.7 mm
Marlow Industries, Inc. RC24-3-01L	26.7 V	2.9 A	49.6 W	3.61 mm	130 °C	8.06 Ohms	Lapped Lead Wires	60 °C	1	40.01 mm	44.7 mm
Marlow Industries, Inc. RC24-3-01	26.7 V	2.9 A	49.6 W	3.71 mm	130 °C	8.06 Ohms	Lead Wires	60 °C	1	40.01 mm	44.7 mm
Marlow Industries, Inc. RC24-3-01S	26.7 V	2.9 A	49.6 W	3.71 mm	130 °C	8.06 Ohms	Lead Wires Sealed	60 °C	1	40.01 mm	44.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 34.72

General part information

Peltier Module 49.6W @ 27°C 2.9 A 130°C

Technical documentation and resources

No documents available
