346-041-526-103
ActiveEDAC Inc.

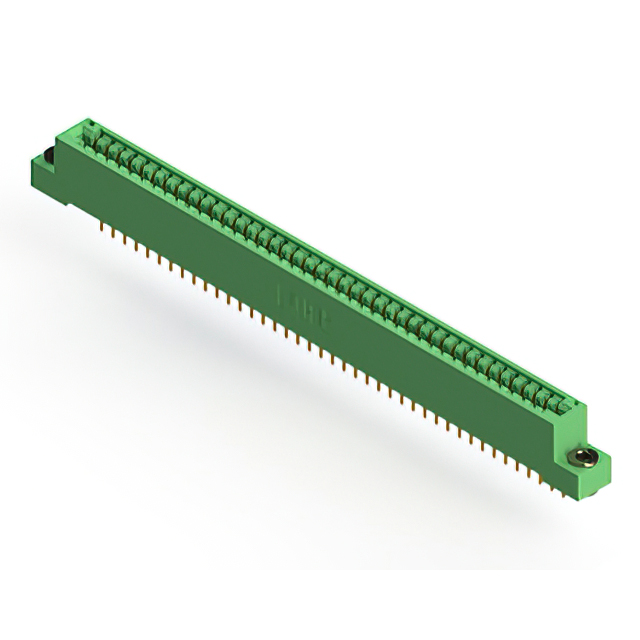

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 41 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-041-526-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 41 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-041-526-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 41 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
346-041 Series
...
| Part | Contact Material | Material - Insulation | Termination Rows | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Color | Read Out | Mounting Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Flange Feature | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Number of Rows | Termination | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Wire Wrap | |||
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole Right Angle | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Solder Wire Wrap | Card Guides | ||
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | Floating Bobbin Flush Mount | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Solder | 0.116 in | 2.95 mm | |
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Wire Wrap | ||||
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Solder Eyelet(s) | 0.128 " | 3.25 mm | |
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | Top Mount Opening Unthreaded | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Solder | 0.156 in | 3.96 mm | |
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Wire Wrap | 0.128 " | 3.25 mm | |
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | Top Mount Opening Unthreaded | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Solder | 0.156 in | 3.96 mm | |
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Solder | 0.128 " | 3.25 mm | |
EDAC Inc. | Copper Alloy | Polyester Thermoplastic | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Single | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 41 | 1 | Wire Wrap | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-041 Series
41 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
