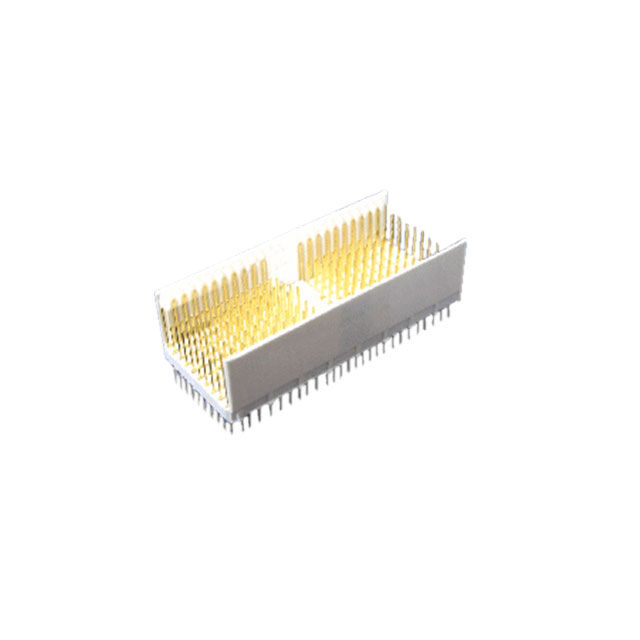

HM2P87PN8114GFLF

Active

Amphenol ICC (FCI)

CONN HEADER 220POS 2MM PRESS-FIT

Deep-Dive with AI

Search across all available documentation for this part.

Documentsmillipacs2mm hm productpresentation Other Related Document HM2S81PE8100N9LF +2

HM2P87PN8114GFLF

Active

Amphenol ICC (FCI)

CONN HEADER 220POS 2MM PRESS-FIT

Deep-Dive with AI

Documentsmillipacs2mm hm productpresentation Other Related Document HM2S81PE8100N9LF +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HM2P87PN8114GFLF

Connector Style	D 22
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	1.5 A
Features	Board Guide
Mounting Type	Through Hole
Number of Positions [custom]	220
Number of Positions [custom]	44
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

HM2P87 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Voltage Rating	Termination	Contact Finish	Connector Type	Connector Style	Number of Rows	Number of Positions	Contact Finish Thickness
Amphenol ICC (FCI) HM2P87PK8111GF	-55 °C	125 °C	0.079 in	2 mm	Board Guide	0.76 Ám	30 Áin	All	Through Hole	220	44	1.5 A	500 V	Press-Fit	Gold	Header Male Pins	D 22
Amphenol ICC (FCI) HM2P87PKA1M8GFLF	-55 °C	125 °C	0.079 in	2 mm	Board Guide	0.76 Ám	30 Áin	All	Through Hole	220	44	1.5 A	750 Vrms	Press-Fit	Gold	Header Male Pins	D 22
Amphenol ICC (FCI) HM2P87PD81A0N9LF	-55 °C	125 °C	0.079 in	2 mm	Board Guide			All	Through Hole			1.5 A	750 Vrms	Press-Fit	Gold	Header Male Pins	D 22	8	176
Amphenol ICC (FCI) HM2P87PA8110AALF	-55 °C	125 °C	0.079 in	2 mm				All	Through Hole			1.5 A	750 Vrms	Press-Fit		Header Male Pins	D 22	8	176
Amphenol ICC (FCI) HM2P87PDF1M0N9LF	-55 °C	125 °C	0.079 in	2 mm	Board Guide	0.76 Ám	30 Áin	All	Through Hole			1.5 A	750 Vrms	Press-Fit	Gold	Header Male Pins	D 22	8	176
Amphenol ICC (FCI) HM2P87PK8190GFLF	-55 °C	125 °C	0.079 in	2 mm	Board Guide				Through Hole			1.5 A	750 Vrms	Press-Fit	Gold	Header Male Pins	D 25	8	176
Amphenol ICC (FCI) HM2P87PME1P1GF	-55 °C	125 °C	0.079 in	2 mm	Board Guide	0.76 Ám	30 Áin	All	Through Hole	220	44	1.5 A	750 Vrms	Press-Fit	Gold	Header Male Pins	D 22
Amphenol ICC (FCI) HM2P87PD81H5N9LF	-55 °C	125 °C	0.079 in	2 mm	Board Guide			All	Through Hole	220	44	1.5 A	750 Vrms	Press-Fit	Gold	Header Male Pins	D 22			Flash
Amphenol ICC (FCI) HM2P87PDJ1M0N9L1LF	-55 °C	125 °C	0.079 in	2 mm	Board Guide	0.76 Ám	30 Áin	All	Through Hole			1.5 A	750 Vrms	Press-Fit	Gold	Header Male Pins	D 22	8	176
Amphenol ICC (FCI) HM2P87PN8114GFLF	-55 °C	125 °C	0.079 in	2 mm	Board Guide	0.76 Ám	30 Áin	All	Through Hole	220	44	1.5 A	750 Vrms	Press-Fit	Gold	Header Male Pins	D 22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	768	$ 9.56

Description

General part information

HM2P87 Series

220 (176 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
