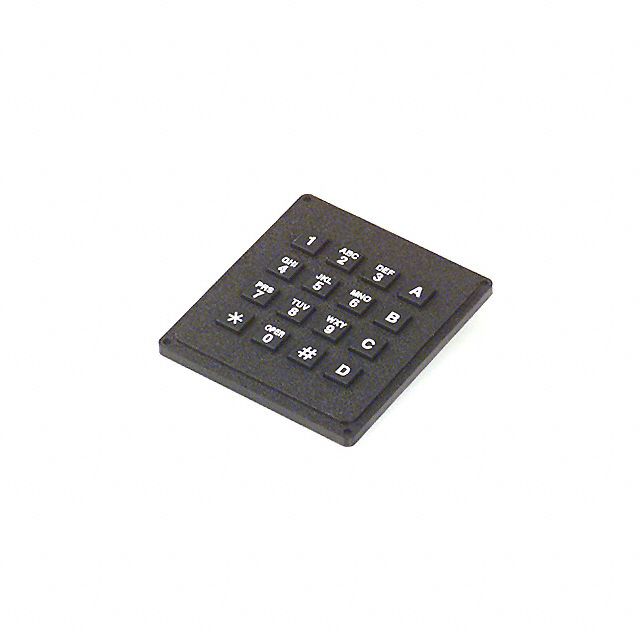

96BB2-056-R

Active

Grayhill Inc.

SWITCH KEYPAD 16KEY 0.005A 12V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 16KEY 0.005A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Key Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Number of Keys	Operational Life	Output Type	Legend	Contact Rating @ Voltage	Ingress Protection	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Switch Type	Illumination	Key Color	Legend Type	Legend Color
Grayhill Inc. 96BB2-056-R	Pin Header	Polymer	68.58 mm	63.5 mm	Panel Mount Rear	16	1000000 Cycles	1.81 mOhm	Telephone Format A ~ D	0.005 A 12 VDC	IP40	4	4	-30 ░C	80 C	Conductive Rubber	Non-Illuminated	Black	Fixed	White
Grayhill Inc. 96BB2-006-R-EL	Pin Header	Polymer	68.58 mm	63.5 mm	Panel Mount Rear	16	1000000 Cycles	1.81 mOhm	Telephone Format A ~ D	0.005 A 12 VDC	IP40	4	4	-30 ░C	80 C	Conductive Rubber	Illuminated	White	Fixed	Black
Grayhill Inc. 96BB2-006-R	Pin Header	Polymer	68.58 mm	63.5 mm	Panel Mount Rear	16	1000000 Cycles	1.81 mOhm	Telephone Format A ~ D	0.005 A 12 VDC	IP40	4	4	-30 ░C	80 C	Conductive Rubber	Non-Illuminated	White	Fixed	Black
Grayhill Inc. 96BB2-002-F	Pin Header	Polymer			Panel Mount Front	16	1000000 Cycles	1.81 mOhm	0 ~ 9 A ~ F	0.005 A 12 VDC	IP40	4	4	-30 ░C	80 C	Conductive Rubber	Non-Illuminated	White	Fixed	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 16 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.005A @ 12VDC
