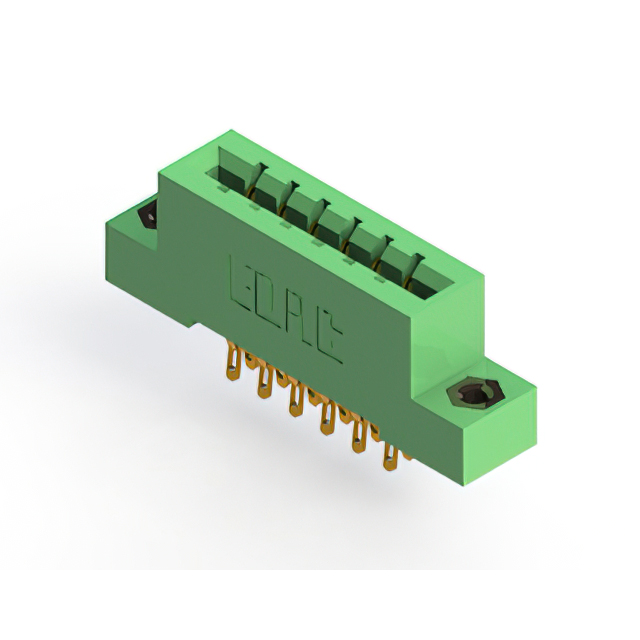

833-012-555-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-012-555-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-012-555-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
833-012 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Gender | Card Type | Termination | Termination Rows | Contact Finish | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Mounting Type | Material - Insulation | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 12 | Cantilever | 125 °C | -40 °C | 12 | 0.156 in | 3.96 mm | Female | Non Specified - Single Edge | Solder | 1 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Diallyl Phthalate (DAP) | Single | 10 Áin | 0.25 Ám | 1 | |||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | 12 | Cantilever | 125 °C | -40 °C | 6 | 0.156 in | 3.96 mm | Female | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Diallyl Phthalate (DAP) | Dual | 10 Áin | 0.25 Ám | 2 | |||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 12 | Cantilever | 125 °C | -40 °C | 6 | 0.156 in | 3.96 mm | Female | Non Specified - Dual Edge | Solder | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole Right Angle | Diallyl Phthalate (DAP) | Dual | 10 Áin | 0.25 Ám | 2 | |||||
EDAC Inc. | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 12 | Cantilever | 125 °C | -40 °C | 6 | 0.156 in | 3.96 mm | Female | Non Specified - Dual Edge | Solder | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole Right Angle | Diallyl Phthalate (DAP) | Dual | 10 Áin | 0.25 Ám | 2 | |||
EDAC Inc. | Side Mount Opening Unthreaded | 12 | Cantilever | 125 °C | -40 °C | 6 | 0.156 in | 3.96 mm | Female | Non Specified - Dual Edge | Solder | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Diallyl Phthalate (DAP) | Dual | 10 Áin | 0.25 Ám | 2 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 12 | Cantilever | 125 °C | -40 °C | 6 | 0.156 in | 3.96 mm | Female | Non Specified - Dual Edge | Solder | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole Right Angle | Diallyl Phthalate (DAP) | Dual | 10 Áin | 0.25 Ám | 2 | |||
EDAC Inc. | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 12 | Cantilever | 125 °C | -40 °C | 6 | 0.156 in | 3.96 mm | Female | Non Specified - Dual Edge | Wire Wrap | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Diallyl Phthalate (DAP) | Dual | 10 Áin | 0.25 Ám | 2 | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 12 | Cantilever | 125 °C | -40 °C | 6 | 0.156 in | 3.96 mm | Female | Non Specified - Dual Edge | Solder | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | Dual | 10 Áin | 0.25 Ám | 2 | Card Extender | ||||
EDAC Inc. | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 12 | Cantilever | 125 °C | -40 °C | 12 | 0.156 in | 3.96 mm | Female | Non Specified - Single Edge | Wire Wrap | 1 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Diallyl Phthalate (DAP) | Single | 10 Áin | 0.25 Ám | 1 | |||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 12 | Cantilever | 125 °C | -40 °C | 6 | 0.156 in | 3.96 mm | Female | Non Specified - Dual Edge | Wire Wrap | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Diallyl Phthalate (DAP) | Dual | 10 Áin | 0.25 Ám | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
