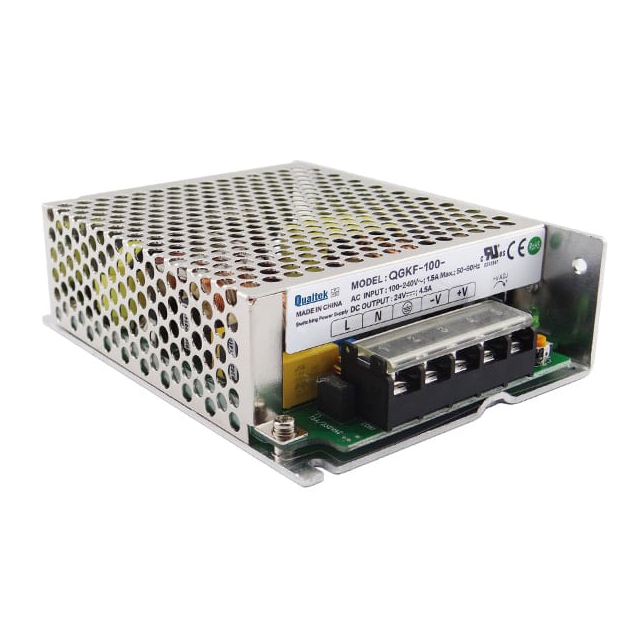

QGKF-100-12

Active

Qualtek

AC/DC CONVERTER 12V 102W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 12V 102W

Technical Specifications

Parameters and characteristics for this part

Specification	QGKF-100-12

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Efficiency	87 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	102 W
Size / Dimension [x]	129 mm
Size / Dimension [x]	5.08 in
Size / Dimension [y]	4.15 in
Size / Dimension [y]	105.3 mm
Size / Dimension [z]	37.6 mm
Size / Dimension [z]	1.48 "
Type	Conformal Coated, Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Number of Outputs	Applications	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Voltage - Output 1	Power (Watts)	Minimum Load Required	Voltage - Isolation
Qualtek QGKF-100-24	1	ITE (Commercial)	4.2 A	37.6 mm	129 mm	4.15 in	105.3 mm	1.48 "	5.08 in	88 %	CB CE cURus	90 VAC	264 VAC	Chassis Mount	60 °C	-20 °C	Conformal Coated Enclosed	Adjustable Output PFC Universal Input	24 V	101 W		3000 V
Qualtek QGKF-100-12	1	ITE (Commercial)		37.6 mm	129 mm	4.15 in	105.3 mm	1.48 "	5.08 in	87 %	CB CE cURus	90 VAC	264 VAC	Chassis Mount	60 °C	-20 °C	Conformal Coated Enclosed	Adjustable Output PFC Universal Input	12 V	102 W		3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 69.87

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
