C10,BK

Active

Serpac

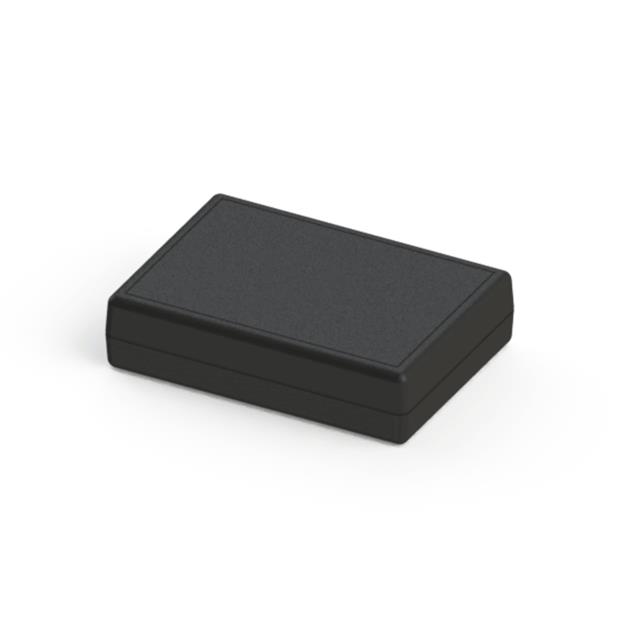

BOX ABS BLACK 3.25"L X 2.3"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 3.25"L X 2.3"W

Technical Specifications

Parameters and characteristics for this part

Specification	C10,BK

Area (L x W)	48.3 cm˛
Area (L x W) [custom]	7.48 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Height [z]	20.32 mm
Height [z]	0.8 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	82.55 mm
Size / Dimension [x]	3.25 in
Size / Dimension [y]	2.3 "
Size / Dimension [y]	58.42 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	16.33 g
Weight	0.036 lb

Part	Weight	Weight	Material Flammability Rating	Color	Material	Area (L x W)	Area (L x W) [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Features	Thickness	Thickness	Ratings	Design	Height [z]	Height [z]	Area (L x W)
Serpac C10 PC RD	19.5 g	0.043 lb	UL94 HB	Translucent - Red	Plastic ABS	48.3 cm˛	7.48 in²	2.3 "	82.55 mm	58.42 mm	3.25 in	Box	Pocket Clip	0.09 in	2.29 mm	IP40	Hand Held Split Sides	20.32 mm	0.8 in
Serpac C10,BK	16.33 g	0.036 lb	UL94 HB	Black	Plastic ABS	48.3 cm˛	7.48 in²	2.3 "	82.55 mm	58.42 mm	3.25 in	Box		0.1 in	2.54 mm	IP40	Hand Held Split Sides	20.32 mm	0.8 in
Serpac C10,GY	16.33 g	0.036 lb	UL94 HB	Gray	Plastic ABS	48.3 cm˛		2.3 "	82.55 mm	58.42 mm	3.25 in	Box		0.1 in	2.54 mm	IP40	Hand Held Split Sides	20.32 mm	0.8 in	7.48 in˛
Serpac C10,TRRD	16.33 g	0.036 lb	UL94 HB	Translucent - Red	Plastic ABS	48.3 cm˛	7.48 in²	2.3 "	82.55 mm	58.42 mm	3.25 in	Box		0.09 in	2.29 mm	IP40	Hand Held Split Sides	20.32 mm	0.8 in
Serpac C10,TRGY	16.33 g	0.036 lb	UL94 HB	Translucent - Gray	Plastic ABS	48.3 cm˛	7.48 in²	2.3 "	82.55 mm	58.42 mm	3.25 in	Box		0.09 in	2.29 mm	IP40	Hand Held Split Sides	20.32 mm	0.8 in
Serpac C10,TRBL	16.33 g	0.036 lb	UL94 HB	Translucent - Blue	Plastic ABS	48.3 cm˛		2.3 "	82.55 mm	58.42 mm	3.25 in	Box		0.09 in	2.29 mm	IP40	Hand Held Split Sides	20.32 mm	0.8 in	7.48 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 3.250" L x 2.300" W (82.55mm x 58.42mm) X 0.800" (20.32mm)
