KBP2MI_T0_00101

NRND

Panjit International Inc.

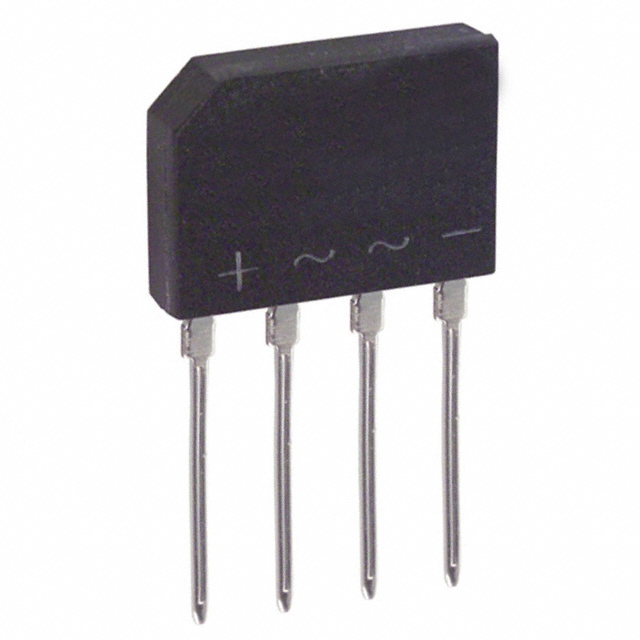

BRIDGE RECT 1PHASE 1KV 2A KBP

Search across all available documentation for this part.

NRND

Panjit International Inc.

BRIDGE RECT 1PHASE 1KV 2A KBP

Technical Specifications

Parameters and characteristics for this part

Specification	KBP2MI_T0_00101

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-ESIP, KBP
Supplier Device Package	KBP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type	Diode Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package
Panjit International Inc. KBP2MI_T0_00101	4-ESIP KBP	-55 °C	150 °C	Standard	1000 V	5 µA	2 A	Through Hole	Single Phase	1.1 V	KBP
Panjit International Inc. KBP2M_T0_00101	4-ESIP KBP	-55 °C	150 °C	Standard	1000 V	5 µA	2 A	Through Hole	Single Phase	1.1 V	KBP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole KBP
