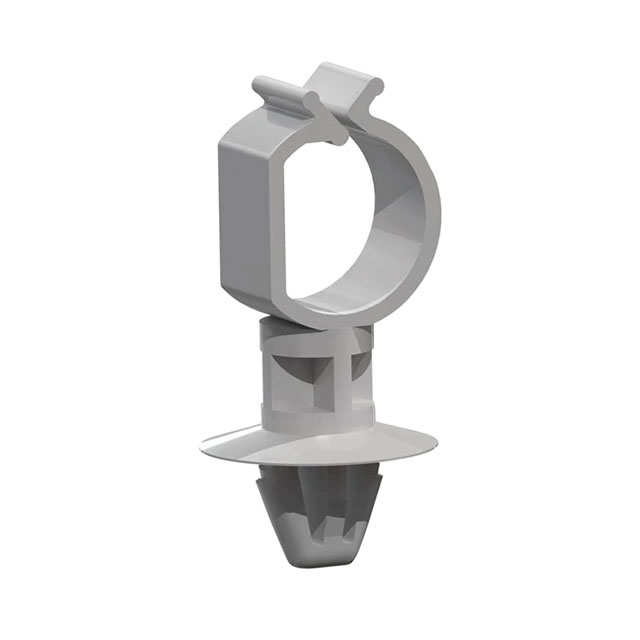

SCCA-4-19

Obsolete

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT ARROW

Search across all available documentation for this part.

Obsolete

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	SCCA-4-19

Color	Natural
Features	Flame Retardant
Height [z]	1.05 in
Height [z]	26.67 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Arrowhead, Winged
Opening Size [custom]	11 mm
Opening Size [custom]	0.433 in
Panel Hole Size [Max]	7 mm
Panel Hole Size [Max]	0.276 in
Panel Hole Size [Min]	6.5 mm
Panel Hole Size [Min]	0.256 in
Panel Thickness [Max]	2 mm
Panel Thickness [Max]	0.079 "
Panel Thickness [Min]	0.6 mm
Panel Thickness [Min]	0.024 in
Type	Clip, Wire Saddle
Type Attributes	Standoff, Flat Side
Width [x]	7.87 mm
Width [x]	0.31 in

Part	Color	Type Attributes	Features	Type	Material	Height [z]	Height [z]	Width [x]	Width [x]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Material Flammability Rating	Opening Size [custom]	Opening Size [custom]	Mounting Type
Essentra Access Solutions SCCA-4-19	Natural	Flat Side Standoff	Flame Retardant	Clip Wire Saddle	Polyamide (PA66) Nylon 6/6	1.05 in	26.67 mm	7.87 mm	0.31 in	7 mm	6.5 mm	0.256 in	0.276 in	0.6 mm	0.024 in	2 mm	0.079 "	UL94 V-0	11 mm	0.433 in	Arrowhead Winged

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.433" (11.00mm)
