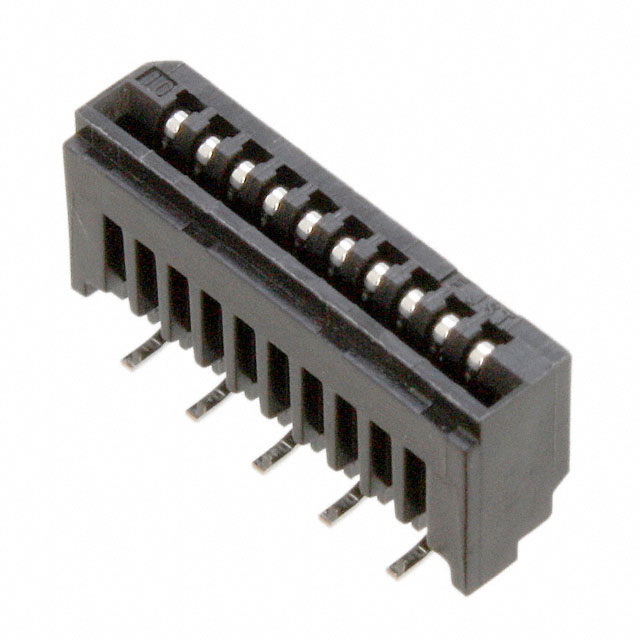

10FMN-BMTTN-A-TF
ActiveJST Sales America Inc.
CONN FFC VERT 10POS 1MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
10FMN-BMTTN-A-TF
ActiveJST Sales America Inc.
CONN FFC VERT 10POS 1MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10FMN-BMTTN-A-TF |
|---|---|
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC |
| Height Above Board | 0.201 in |
| Height Above Board | 5.1 mm |
| Housing Color | Black |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.75 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.47 | |||
| Digi-Reel® | 1 | $ 0.75 | ||
| 10 | $ 0.65 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.47 | |||
| Tape & Reel (TR) | 1000 | $ 0.39 | ||
| 2000 | $ 0.38 | |||
| 3000 | $ 0.35 | |||
| 5000 | $ 0.34 | |||
| 10000 | $ 0.32 | |||
| 25000 | $ 0.30 | |||
Description
General part information
10FMN-BM Series
10 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
