TG-AL375-320-320-0.3-0

Obsolete

t-Global Technology

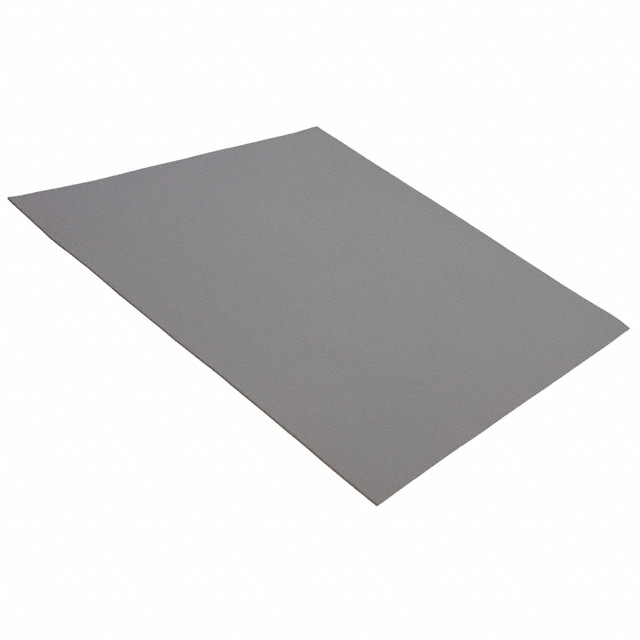

THERM PAD 320X320MM GRAY

Search across all available documentation for this part.

Obsolete

t-Global Technology

THERM PAD 320X320MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shelf Life	Thickness	Thickness	Type	Adhesive	Outline [y]	Outline [x]	Thermal Conductivity	Shape	Thickness [custom]	Thickness [custom]
t-Global Technology TG-AL375-300-300-1.0-1A	Gray	12 Months	0.0394 in	1 mm	Conductive Pad Sheet	Adhesive - One Side	300 mm	300 mm	1.6 W/m-K	Square
t-Global Technology TG-AL375-300-300-1.0-0	Gray	24 Months	0.0394 in	1 mm	Conductive Pad Sheet		300 mm	300 mm	1.6 W/m-K	Square
t-Global Technology TG-AL375-100-100-1.0-1A	Gray	12 Months	0.0394 in	1 mm	Conductive Pad Sheet	Adhesive - One Side	100 mm	100 mm	1.6 W/m-K	Square
t-Global Technology TG-AL375-320-320-2.0-1A	Gray	12 Months	0.079 in	2 mm	Conductive Pad Sheet	Adhesive - One Side	320 mm	320 mm	1.6 W/m-K	Square
t-Global Technology TG-AL375-100-100-5.0-1A	Gray	12 Months	0.197 "	5 mm	Conductive Pad Sheet	Adhesive - One Side	100 mm	100 mm	1.6 W/m-K	Square
t-Global Technology TG-AL375-300-300-10.0-0	Gray	24 Months	0.394 in	10 mm	Conductive Pad Sheet		300 mm	300 mm	1.6 W/m-K	Square
t-Global Technology TG-AL375-100-100-3.0-1A	Gray	12 Months	0.118 in	3 mm	Conductive Pad Sheet	Adhesive - One Side	100 mm	100 mm	1.6 W/m-K	Square
t-Global Technology TG-AL375-150-150-0.5-1A	Gray	12 Months	0.0197 in	0.5 mm	Conductive Pad Sheet	Adhesive - One Side	150 mm	150 mm	1.6 W/m-K	Square
t-Global Technology TG-AL375-320-320-0.3-0	Gray	24 Months			Conductive Pad Sheet		320 mm	320 mm	1.6 W/m-K	Square	0.305 mm	0.012 "
t-Global Technology TG-AL375-320-320-3.0-0	Gray	24 Months	0.118 in	3 mm	Conductive Pad Sheet		320 mm	320 mm	1.6 W/m-K	Square
