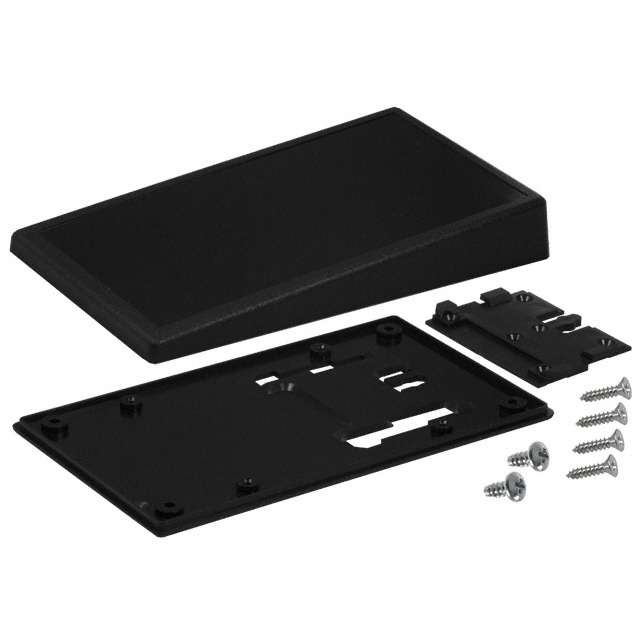

05SW,BK

Active

Serpac

BOX ABS BLACK 5.640"L X 3.26"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 5.640"L X 3.26"W

Technical Specifications

Parameters and characteristics for this part

Specification	05SW,BK

Area (L x W) [custom]	18.4 in²
Area (L x W) [custom]	119 cm²
Color	Black
Container Type	Box
Design	Split Sides and Slanted Top
Features	PCB Supports, Wall Mount
Height [z]	0.91 in
Height [z]	23.11 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	5.64 in
Size / Dimension [x]	143.26 mm
Size / Dimension [y]	3.26 in
Size / Dimension [y]	82.8 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	102.97 g
Weight	0.227 lb

Part	Container Type	Ratings	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Color	Thickness	Thickness	Features	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]	Weight	Weight	Design
Serpac 05SW,GY	Box	IP40	UL94 HB	3.26 in	5.64 in	82.8 mm	143.26 mm	Plastic ABS	Gray	2.54 mm	0.1 in	PCB Supports Wall Mount	0.91 in	23.11 mm	18.4 in²	119 cm²	102.97 g	0.227 lb	Split Sides and Slanted Top
Serpac 05SW,BK	Box	IP40	UL94 HB	3.26 in	5.64 in	82.8 mm	143.26 mm	Plastic ABS	Black	2.54 mm	0.1 in	PCB Supports Wall Mount	0.91 in	23.11 mm	18.4 in²	119 cm²	102.97 g	0.227 lb	Split Sides and Slanted Top
Serpac 05S,BK	Box	IP40	UL94 HB	3.26 in	5.64 in	82.8 mm	143.26 mm	Plastic ABS	Black	2.54 mm	0.1 in	PCB Supports	0.91 in	23.11 mm	18.4 in²	119 cm²	102.97 g	0.227 lb	Split Sides and Slanted Top
Serpac 05SW,AL	Box	IP40	UL94 HB	3.26 in	5.64 in	82.8 mm	143.26 mm	Plastic ABS	Almond	2.54 mm	0.1 in	PCB Supports Wall Mount	0.91 in	23.11 mm	18.4 in²	119 cm²	102.97 g	0.227 lb	Split Sides and Slanted Top
Serpac 05S,AL	Box	IP40	UL94 HB	3.26 in	5.64 in	82.8 mm	143.26 mm	Plastic ABS	Almond	2.54 mm	0.1 in	PCB Supports	0.91 in	23.11 mm	18.4 in²	119 cm²	102.97 g	0.227 lb	Split Sides and Slanted Top
Serpac 05S,GY	Box	IP40	UL94 HB	3.26 in	5.64 in	82.8 mm	143.26 mm	Plastic ABS	Gray	2.54 mm	0.1 in	PCB Supports	0.91 in	23.11 mm	18.4 in²	119 cm²	102.97 g	0.227 lb	Split Sides and Slanted Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.80

General part information

Box Plastic, ABS Black Split Sides and Slanted Top 5.640" L x 3.260" W (143.26mm x 82.80mm) X 0.910" (23.11mm)

Technical documentation and resources

No documents available
