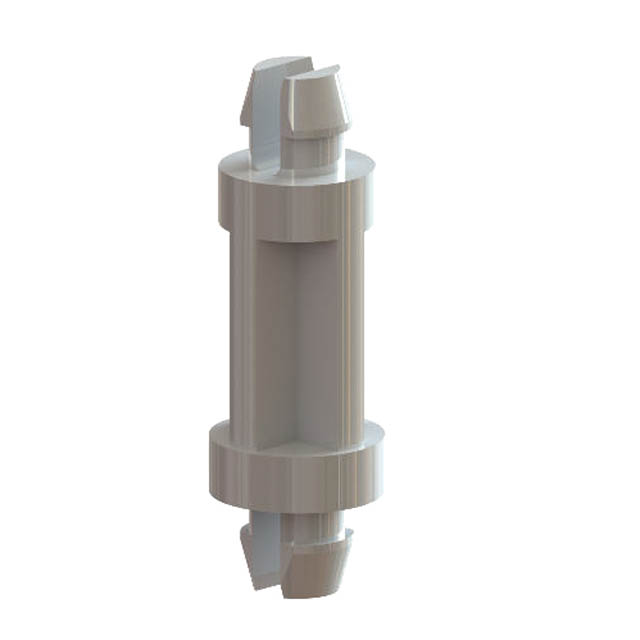

SP1-12-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 3/4"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP1-12-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 3/4"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP1-12-01 |
|---|---|
| Between Board Height | 0.75 in |
| Between Board Height | 0.75 in |
| Between Board Height | 19.05 mm |
| Holding Type | Snap Lock |
| Length - Overall [x] | 27.04 mm |
| Length - Overall [x] | 1.065 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.157 " |
| Mounting Hole Diameter [diameter] | 4 mm |
| Mounting Panel Thickness | 0.062 in |
| Mounting Panel Thickness | 0.0625 in |
| Mounting Panel Thickness | 1.57 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.40 | |
| 5 | $ 0.33 | |||
| 10 | $ 0.31 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.20 | |||
Description
General part information
SP1-12 Series
Board Support Snap Lock / Snap Lock Nylon 0.750" (19.05mm) 3/4"
