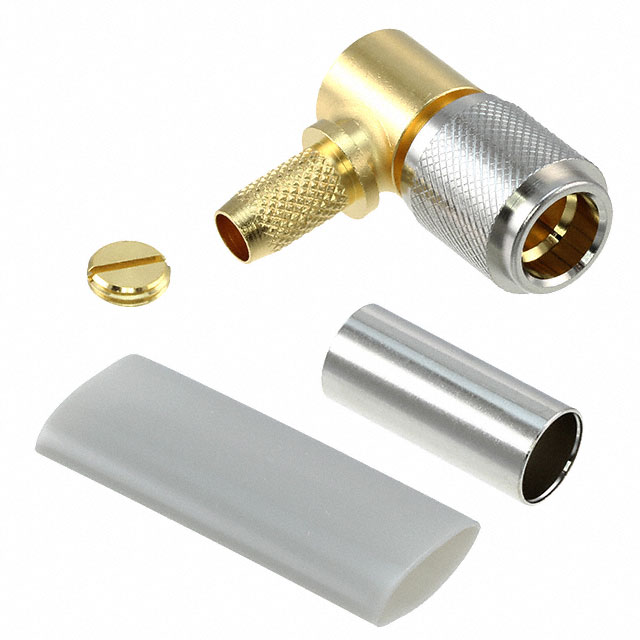

POB-LP-55/U(40)

Active

Hirose Electric USA, Inc.

RF CONNECTORS / COAXIAL CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

RF CONNECTORS / COAXIAL CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	POB-LP-55/U(40)

Body Finish	Gold
Body Material	Brass
Cable Group	142B, RG-55
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	POB
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp

RF Connectors / Coaxial Connectors

Part	Mounting Type	Connector Type	Connector Style	Number of Ports	Cable Group	Dielectric Material	Impedance	Housing Color	Center Contact Material	Body Material	Frequency - Max [Max]	Contact Termination	Fastening Type	Center Contact Plating	Mating Cycles	Shield Termination	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Includes
Hirose Electric USA, Inc. POB-J-85(40)
Hirose Electric USA, Inc. POB-J-58/U(40)	Free Hanging (In-Line)	Female Socket Jack	POB	1	RG-58	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Beryllium Copper	Brass	12.4 GHz	Solder	Snap-On	Gold	500	Crimp	Gold
Hirose Electric USA, Inc. POB-LP-55/U(40)	Free Hanging (In-Line) Right Angle	Male Pin Plug	POB	1	142B RG-55	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	Brass	6000 MHz	Solder	Snap-On	Gold	500	Crimp	Gold	85 °C	-55 °C	1 Heat Shrink 2 pcs - 1 Connector
Hirose Electric USA, Inc. POB-LP-58/U(40)	Free Hanging (In-Line) Right Angle	Male Pin Plug	POB	1	RG-58	Polytetrafluoroethylene (PTFE)	50 Ohms	Silver	Brass	Brass	12.4 GHz	Solder	Snap-On	Gold	500	Crimp	Nickel
Hirose Electric USA, Inc. POB-LP-141(40)	Free Hanging (In-Line) Right Angle	Male Pin Plug	POB	1		Polytetrafluoroethylene (PTFE)	50 Ohms	Silver	Brass	Brass	12.4 GHz	Solder	Snap-On	Gold	500	Crimp	Nickel
Hirose Electric USA, Inc. POB(M)-LP-141(40)	Free Hanging (In-Line) Right Angle	Male Pin Plug	POB	1		Polytetrafluoroethylene (PTFE)	50 Ohms	Silver	Brass	Brass	12.4 GHz	Solder	Snap-On	Gold	500	Crimp	Nickel
