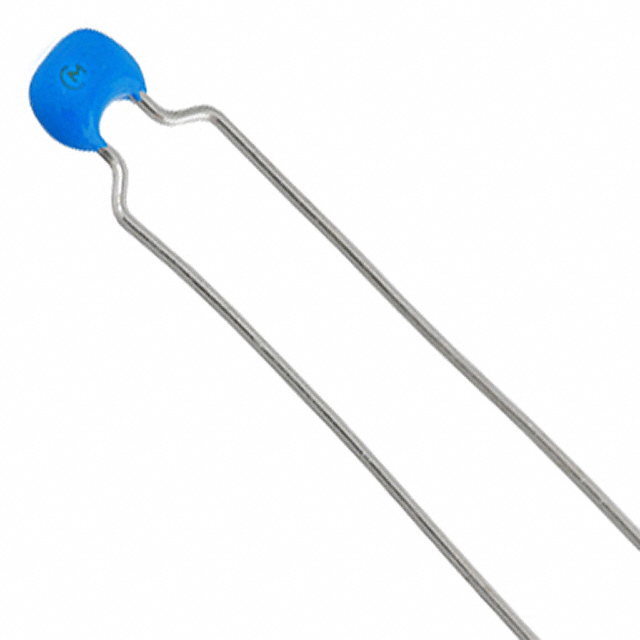

RPEE41E105M3M1C03A

Obsolete

Murata Power Solutions Inc.

CAP CER 1.0UF 25V Z5U RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP CER 1.0UF 25V Z5U RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	RPEE41E105M3M1C03A

Applications	General Purpose
Capacitance	1 µF
Height - Seated (Max) [Max]	6.3 mm
Height - Seated (Max) [Max]	0.248 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Kinked
Mounting Type	Through Hole
Operating Temperature [Max] [custom]	85 °C
Operating Temperature [Min] [custom]	10 °C
Package / Case	Radial
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.5 mm
Temperature Coefficient	Z5U
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Temperature Coefficient	Lead Style	Capacitance	Voltage - Rated	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Applications	Package / Case	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Murata Power Solutions Inc. RPEE41E105M3M1C03A	Z5U	Kinked	1 µF	25 VDC	20 %	5 mm	0.197 in	10 °C	85 °C	General Purpose	Radial	Through Hole	6.3 mm	0.248 in	0.197 in	0.098 in	5 mm	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 µF ±20% 25V Ceramic Capacitor Z5U Radial
