GL30-RT/32/40A/98A

Active

PEPPERL+FUCHS

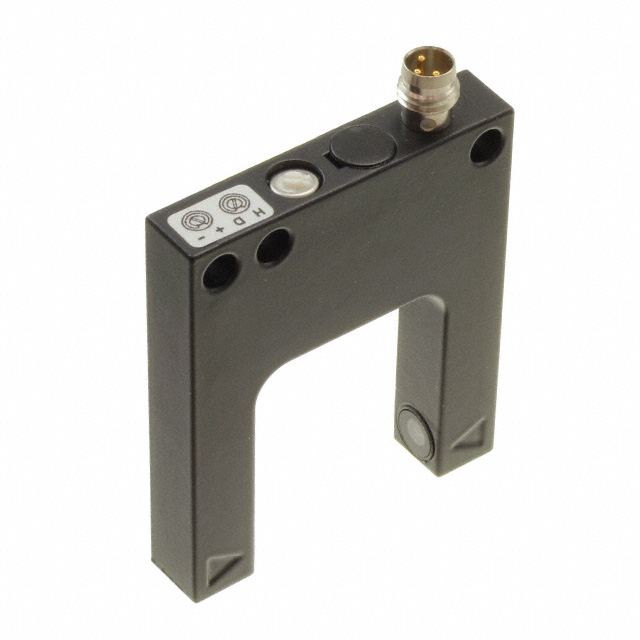

PHOTOELECTRIC SENSOR, GL30 SERIES, 30 MM, THROUGH BEAM, PNP, 10 VDC TO 30 VDC, M8 CONNECTOR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTOELECTRIC SENSOR, GL30 SERIES, 30 MM, THROUGH BEAM, PNP, 10 VDC TO 30 VDC, M8 CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	GL30-RT/32/40A/98A

Connection Method	Connector, M8
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	PNP - Open Collector, Light-ON\Dark-ON
Response Time	160 µs
Sensing Distance	1.181 in
Sensing Distance	30 mm
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Response Time	Sensing Method	Output Configuration	Ingress Protection	Connection Method	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]
PEPPERL+FUCHS GL30-RT/32/40A/98A	160 µs	Through-Beam	PNP - Open Collector Light-ON\Dark-ON	IP67	Connector M8	1.181 in	30 mm	-20 C	60 °C	Red LED	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 1.181" (30mm) PNP - Open Collector, Light-ON\Dark-ON
