02981001ZXSS
ActiveFUSE BLOK BLT DWN 32V 500A CHASS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 02981001ZXSS |
|---|---|
| Current Rating (Amps) | 500 A |
| For Use With/Related Products | MEGA (AMG) |
| Fuse Size [x] | 2.7 in |
| Fuse Size [x] | 68.58 mm |
| Fuse Size [y] | 19.05 mm |
| Fuse Size [y] | 0.75 in |
| Fuse Size [z] | 0.42 in |
| Fuse Size [z] | 10.67 mm |
| Fuse Type | Bolt Down |
| Fuseholder Type | Block |
| Mounting Type | Chassis Mount |
| Number of Circuits | 1 |
| Termination Style | Bolt Down |
| Voltage | 70 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 11.19 | |
Description
General part information
02981001ZXSS Series

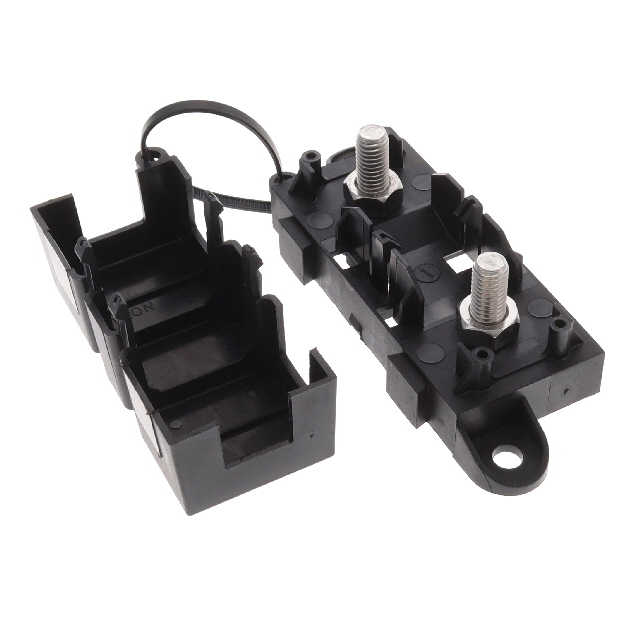

The MEGA® 298 Bolt-Down Series 70 V High-Current Fuse Holder works with MEGA® M8-size fuses up to 500 amps. As a high-amp fuse holder, it's ideal for battery and alternator connections as well as providing ultra-high-current protection for other types of heavy gauge cables. This fuse holder configuration (02981001ZXSS) comes with a base featuring M6 mounting holes, a tether, and a protective cover with openings in positions A, B, C, and D (see 2D print).
