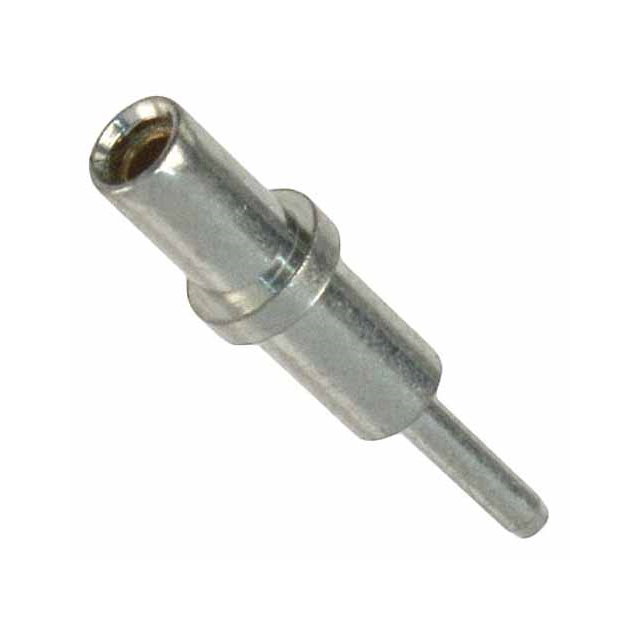

H3194-46

Active

Harwin Inc.

CONTACT JACK ASSY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONTACT JACK ASSY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H3194-46

Accepts Pin Diameter [Max]	1.05 mm
Accepts Pin Diameter [Max]	0.041 "
Accepts Pin Diameter [Min]	0.035 "
Accepts Pin Diameter [Min]	0.89 mm
Contact Finish	Tin
Contact Finish Thickness [custom]	4 µm
Contact Finish Thickness [custom]	157.5 µin
Contact Material	Beryllium Copper
Flange Diameter	3.18 mm
Flange Diameter [diameter]	0.125 in
Insertion Force [Max]	9 N
Insertion Force [Min]	3 N
Length - Overall [x]	0.526 in
Length - Overall [x]	13.35 mm
Mounting Hole Diameter [Max] [diameter]	0.097 in
Mounting Hole Diameter [Max] [diameter]	2.46 mm
Mounting Hole Diameter [Min] [diameter]	0.093 "
Mounting Hole Diameter [Min] [diameter]	2.37 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.04 in
Pin Hole Diameter [diameter]	1.02 mm
Socket Depth	4.28 mm
Socket Depth	0.169 in
Tail Type	Standard Tail
Termination	Solder

Part	Contact Material	Contact Finish	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Insertion Force [Max]	Insertion Force [Min]	Tail Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Contact Finish Thickness [custom]	Contact Finish Thickness [custom]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Flange Diameter	Flange Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness
Harwin Inc. H3194-46	Beryllium Copper	Tin	0.526 in	13.35 mm	0.04 in	1.02 mm	9 N	3 N	Standard Tail	-55 °C	125 °C	0.097 in	2.46 mm	0.093 "	2.37 mm	4 µm	157.5 µin	1.05 mm	0.041 "	0.035 "	0.89 mm	4.28 mm	0.169 in	3.18 mm	0.125 in	Solder
Harwin Inc. H3194-05	Beryllium Copper	Gold	0.526 in	13.35 mm	0.04 in	1.02 mm	9 N	3 N	Standard Tail	-55 °C	125 °C	0.097 in	2.46 mm	0.093 "	2.37 mm			1.05 mm	0.041 "	0.035 "	0.89 mm	4.28 mm	0.169 in	3.18 mm	0.125 in	Solder	5.9 µin	0.15 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.83
Newark	Each	1000	$ 1.05
