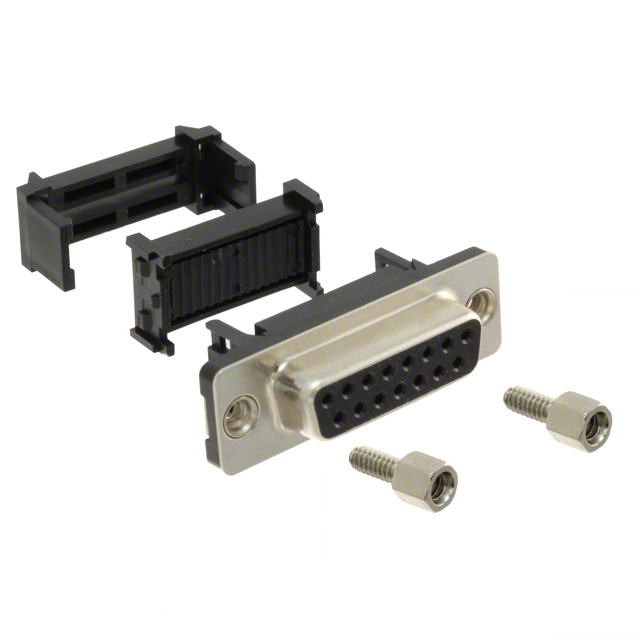

410F0-15-1-004S

Active

CnC Tech, LLC

CONN D-SUB RCPT 15POS IDC

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN D-SUB RCPT 15POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	410F0-15-1-004S

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Feed Through, Strain Relief
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Contact Type	Features	Shell Size, Connector Layout	Contact Material	Number of Rows	Flange Feature	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Positions	Connector Style	Contact Finish	Voltage Rating	Connector Type	Shell Material, Finish	Material Flammability Rating
CnC Tech, LLC 410F0-15-1-004S	Signal	Feed Through Strain Relief	2	Brass	2	Female Screwlock (4-40) Mating Side	IDC Ribbon Cable	Free Hanging (In-Line)	-40 °C	105 ░C	Polybutylene Terephthalate (PBT) Glass Filled	15	D-Sub	Gold	250 VDC	Receptacle Female Sockets	Nickel Plated Steel	UL94 V-0
CnC Tech, LLC 410F0-15-1-00	Signal	Feed Through	2	Brass	2	Female Screwlock (4-40) Mating Side	IDC Ribbon Cable	Free Hanging (In-Line)	-40 °C	105 ░C	Polybutylene Terephthalate (PBT) Glass Filled	15	D-Sub	Gold	250 VDC	Receptacle Female Sockets	Nickel Plated Steel	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
