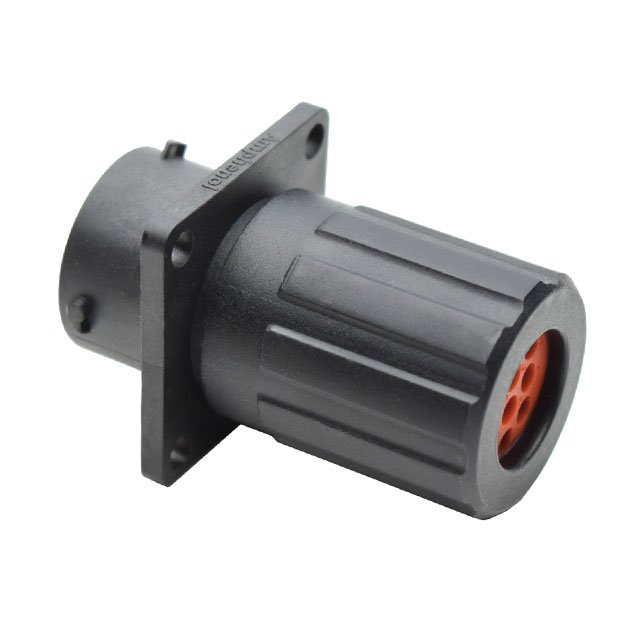

RTS012N10PHEC03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 10POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer

RTS012N10PHEC03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 10POS PNL MT

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS012N10PHEC03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shielding	Unshielded
Type	For Male Pins

RTS012 Series

Part	Shielding	Contact Type	Orientation	Shell Size - Insert	Includes	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Type	Connector Type	Ingress Protection	Contact Shape	Note	Fastening Type	Number of Positions	Material Flammability Rating	Housing Color	Contact Size	Features
Amphenol Sine Systems Corp RTS012N8S03	Unshielded	Crimp	N	12-8	1 Connector 1 Gasket	Thermoplastic	125 °C	-40 °C	Flange	For Female Sockets	Receptacle Housing	IP67 IP69K	Circular	Contacts Not Included	Bayonet Lock	8	UL94 V-0	Black	16
Amphenol Sine Systems Corp RTS012N10SHEC03	Unshielded	Crimp	N			Thermoplastic	125 °C	-40 °C	Flange	For Female Sockets	Receptacle Housing	IP67 IP69K	Circular	Contacts Not Included	Bayonet Lock	10	UL94 V-0	Black	20	Backshell
Amphenol Sine Systems Corp RTS012N10PHEC03	Unshielded	Crimp	N			Thermoplastic	125 °C	-40 °C	Flange	For Male Pins	Receptacle Housing	IP67 IP69K	Circular	Contacts Not Included	Bayonet Lock	10	UL94 V-0	Black	20	Backshell
Amphenol Sine Systems Corp RTS012N10P03	Unshielded	Crimp	N		1 Connector 1 Gasket	Thermoplastic	125 °C	-40 °C	Flange	For Male Pins	Receptacle Housing	IP67 IP69K	Circular	Contacts Not Included	Bayonet Lock	10	UL94 V-0	Black	20
Amphenol Sine Systems Corp RTS012N4S03	Unshielded	Crimp	N	12-4	1 Connector 1 Gasket	Thermoplastic	125 °C	-40 °C	Flange	For Female Sockets	Receptacle Housing	IP67 IP69K	Circular	Contacts Not Included	Bayonet Lock	4	UL94 V-0	Black	16
Amphenol Sine Systems Corp RTS012N2P03	Unshielded	Crimp	N	12-2	1 Connector 1 Gasket	Thermoplastic	125 °C	-40 °C	Flange	For Male Pins	Receptacle Housing	IP67 IP69K	Circular	Contacts Not Included	Bayonet Lock	4	UL94 V-0	Black	2.5 mm 20
Amphenol Sine Systems Corp RTS012N2S03	Unshielded	Crimp	N	12-2	1 Connector 1 Gasket	Thermoplastic	125 °C	-40 °C	Flange	For Female Sockets	Receptacle Housing	IP67 IP69K	Circular	Contacts Not Included	Bayonet Lock	4	UL94 V-0	Black	2.5 mm 20
Amphenol Sine Systems Corp RTS012N3S03	Unshielded	Crimp	N	12-3	1 Connector 1 Gasket	Thermoplastic	125 °C	-40 °C	Flange	For Female Sockets	Receptacle Housing	IP67 IP69K	Circular	Contacts Not Included	Bayonet Lock		UL94 V-0	Black	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 9.56

Description

General part information

RTS012 Series

10 Position Circular Connector Receptacle Housing Panel Mount Backshell

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

Eco|mate® Aquarius™ Flyer

Datasheet
