SA3157/1

Obsolete

BULGIN LIMITED

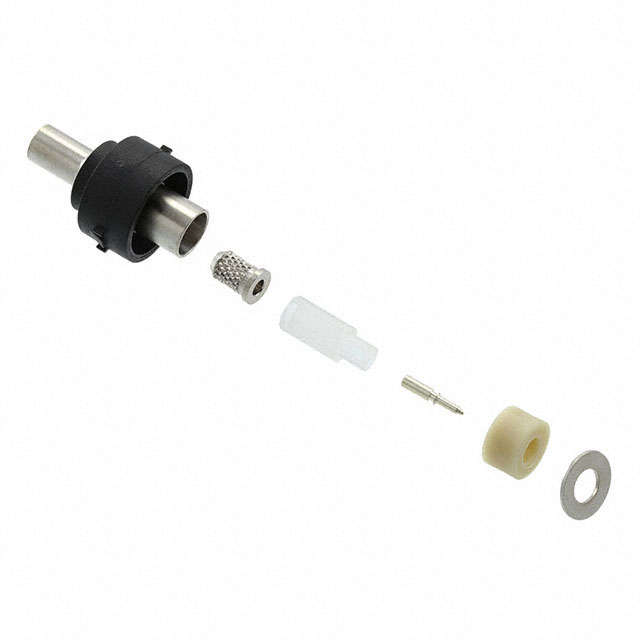

CONN BNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Obsolete

BULGIN LIMITED

CONN BNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	SA3157/1

Cable Group	URM43, RG58, URM76
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Impedance	50 Ohms
Includes	1 Cable Gland, 1 Washer, 1 Connector
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Shield Termination	Crimp

Part	Contact Termination	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Center Contact Material	Connector Type	Includes	Connector Style	Shield Termination	Fastening Type	Ingress Protection	Center Contact Plating	Impedance	Cable Group	Housing Color
BULGIN LIMITED SA3157/1	Crimp	1	-20 C	70 °C	Free Hanging (In-Line)	Brass	Female Socket Jack	1 Cable Gland 1 Connector 1 Washer	BNC	Crimp	Bayonet Lock	IP68 - Dust Tight Waterproof	Silver	50 Ohms	RG58 URM43 URM76	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
