842-062-555-207
ActiveEDAC Inc.

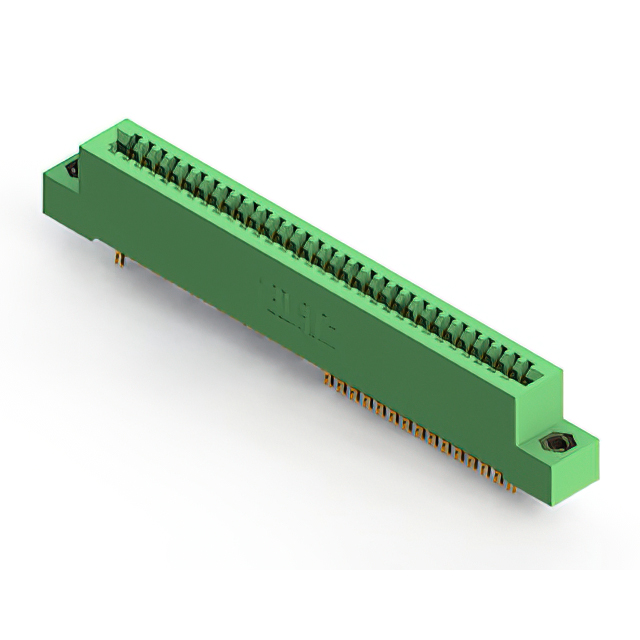

CONN EDGE DUAL FMALE 62POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-062-555-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-062-555-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-062 Series
| Part | Mounting Type | Termination Rows | Material - Insulation | Card Type | Gender | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Rows | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Solder Eyelet(s) | |
EDAC Inc. | Board Edge Straddle Mount | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Solder | Card Extender |
EDAC Inc. | Board Edge Straddle Mount | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Solder | Card Extender | ||
EDAC Inc. | Through Hole | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Wire Wrap | |
EDAC Inc. | Through Hole | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Solder | |||
EDAC Inc. | Through Hole Right Angle | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Solder | |
EDAC Inc. | Through Hole | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Wire Wrap | ||||
EDAC Inc. | Through Hole | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Wire Wrap | |
EDAC Inc. | Board Edge Straddle Mount | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Solder | Card Extender | |||
EDAC Inc. | Board Edge Straddle Mount | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Dual | 125 °C | -40 °C | Green | Gold | 62 | 31 | 2 | Solder | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-062 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
