RF1391C
ObsoleteMurata Power Solutions Inc.
FILTER SAW 433.42MHZ 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
RF1391C
ObsoleteMurata Power Solutions Inc.
FILTER SAW 433.42MHZ 8SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF1391C |
|---|---|
| Bandwidth | 600 kHz |
| Frequency - Center | 433.42 MHz |
| Height (Max) [Max] | 0.067 " |
| Height (Max) [Max] | 1.7 mm |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |

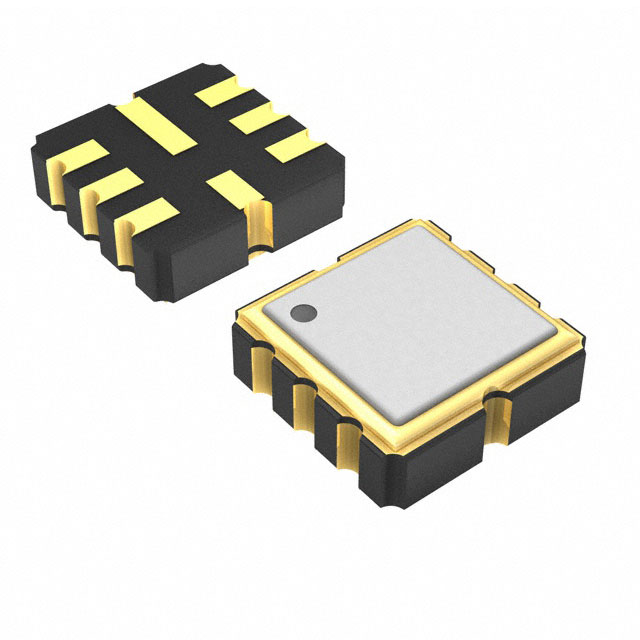

| Package / Case | 8-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 1.87 | |
| Tape & Reel (TR) | 1 | $ 0.84 | ||
| 1 | $ 0.92 | |||
Description
General part information
RF13 Series
433.42MHz Frequency Remote Control RF SAW Filter (Surface Acoustic Wave) 3dB 600kHz Bandwidth 8-SMD, No Lead
Documents
Technical documentation and resources
No documents available
