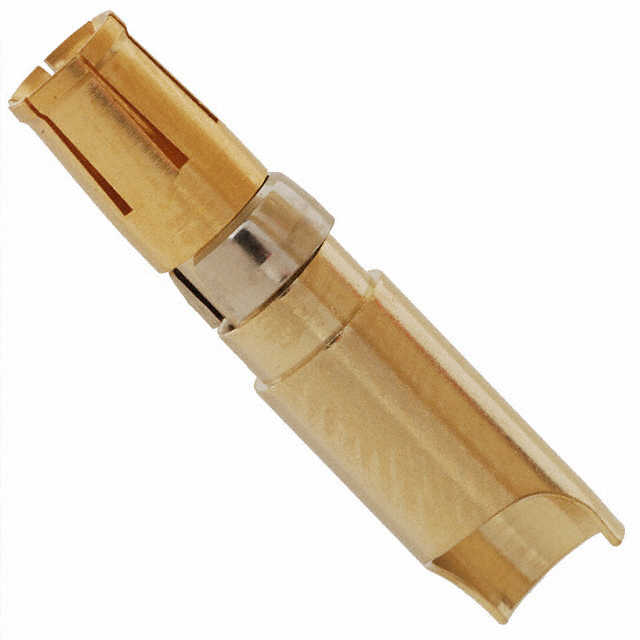

132C10049X

Active

Amphenol CONEC

D SUB CONTACT, SOCKET, 10-8AWG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB CONTACT, SOCKET, 10-8AWG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	132C10049X

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Termination	Solder Cup
Contact Type	Female Socket
Termination Finish	Gold
Termination Finish Thickness	0.203 µm
Termination Finish Thickness	8 µin
Type	Power
Wire Gauge [Max]	10 AWG
Wire Gauge [Min]	8 AWG

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Termination Finish Thickness	Termination Finish Thickness	Contact Material	Contact Termination	Contact Finish	Type	Termination Finish	Wire Gauge [Min]	Wire Gauge [Max]	Termination Finish Thickness
Amphenol CONEC 132C10049X	0.76 Ám	30 Áin	Female Socket	0.203 µm	8 µin	Copper Alloy	Solder Cup	Gold	Power	Gold	8 AWG	10 AWG
Amphenol CONEC 132C10029X	0.76 Ám	30 Áin	Female Socket			Copper Alloy	Solder Cup	Gold	Power	Gold	12 AWG	14 AWG	Flash
Amphenol CONEC 132C10019X	0.76 Ám	30 Áin	Female Socket	0.203 µm	8 µin	Copper Alloy	Solder Cup	Gold	Power	Gold	16 AWG	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Female Socket Gold 8-10 AWG Solder Cup Machined
