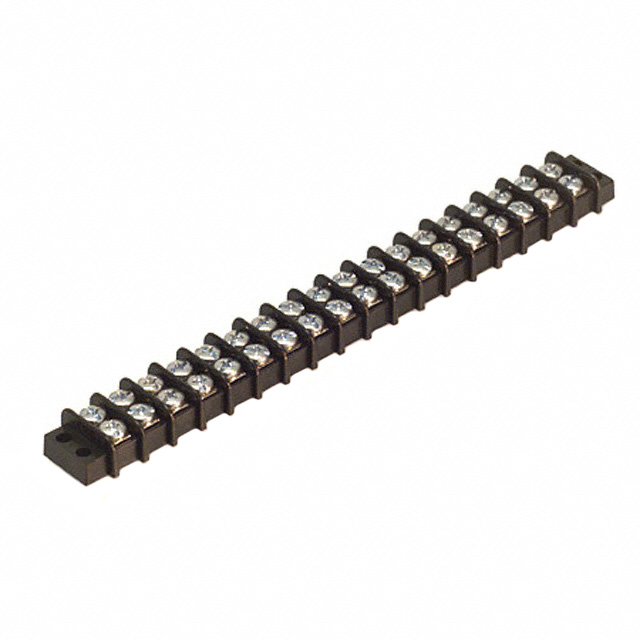

0387700118

Active

Molex

CONN BARRIER STRP 18CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0387700118

Active

Molex

CONN BARRIER STRP 18CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0387700118

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Color	Black
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	18
Number of Rows	2
Number of Wire Entries	36
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc, Clear Chromate
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

038770 Series

Part	Top Termination	Voltage Rating	Number of Circuits	Material - Insulation	Barrier Type	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Color	Terminal Block Type	Material Flammability Rating	Current Rating (Amps)	Number of Wire Entries	Pitch [x]	Pitch [x]	Number of Rows	Features	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Screw Finish	Terminal Screw Material	Number of Circuits [custom]	Operating Temperature
Molex 0387700414	Screws	300 VDC	14	Polybutylene Terephthalate (PBT)	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A	28	9.53 mm	0.375 in	2	Flange
Molex 0387700101	Screws	300 VDC	1	Polybutylene Terephthalate (PBT) Polyester	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A	2			2	Flange	-40 °C	110 °C	Clear Chromate Zinc	Steel
Molex 0387700121	Screws	300 VDC	21	Polybutylene Terephthalate (PBT)	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A	42	9.53 mm	0.375 in	2	Flange			Clear Chromate Zinc	Steel
Molex 0387700410	Screws	300 VDC	10	Polybutylene Terephthalate (PBT)	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A	20	9.53 mm	0.375 in	2	Flange
Molex 0387700208	Screws	300 VDC		Polybutylene Terephthalate (PBT)	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A	16	9.53 mm	0.375 in	2	Flange			Nickel	Brass	8
Molex 0387700604	Screws	300 VDC	4	Polybutylene Terephthalate (PBT)	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A	8	9.53 mm	0.375 in	2	Flange			Clear Chromate Zinc	Steel
Molex 0387700305	Screws with Captive Plate	300 VDC	5	Polybutylene Terephthalate (PBT)	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A	10	9.53 mm	0.375 in	2	Flange			Clear Chromate Zinc	Steel
Molex 0387700112	Screws	300 VDC	12	Polybutylene Terephthalate (PBT)	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A		9.53 mm	0.375 in	2	Flange			Clear Chromate Zinc	Steel
Molex 0387700118	Screws	300 VDC	18	Polybutylene Terephthalate (PBT)	2 Wall (Dual)	Chassis Panel	14 AWG	22 AWG	Closed	Black	Barrier Block	UL94 V-0	15 A	36	9.53 mm	0.375 in	2	Flange			Clear Chromate Zinc	Steel
Molex 0387700508	Screws	300 VDC		Thermoplastic	2 Wall (Dual)	Chassis Panel	14 AWG	24 AWG	Closed	Black	Barrier Block	UL94 V-0	20 A	16	9.53 mm	0.375 in	2	Flange Positions Stamped			Chromate Zinc	Steel	8	110 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.29
		10	$ 6.81

Description

General part information

038770 Series

18 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
