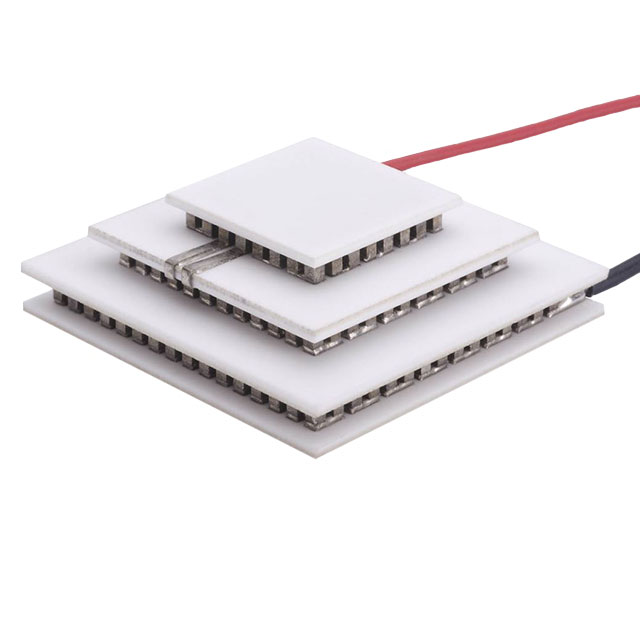

9350004-397

Active

Laird Thermal Systems, Inc.

MS3,119,14,15,11,21,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

MS3,119,14,15,11,21,W8

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Delta Tmax @ Th	Features	Operating Temperature	Voltage - Max [Max]	Qmax @ Th	Number of Stages	Height [z]
Laird Thermal Systems, Inc. 9350004-397	30 mm	30 mm	3.9 A	25 °C 100 °C	Lead Wires Non-Sealed	80 °C	8.1 V	7.5 W	3	10.39 mm
Laird Thermal Systems, Inc. 9350004-301	30 mm	30 mm	3.9 A	25 °C 100 °C	Lead Wires Non-Sealed	80 °C	8.1 V	7.5 W	3	10.39 mm
Laird Thermal Systems, Inc. 9350004-399	30 mm	30 mm	3.9 A	25 °C 100 °C	Lead Wires Non-Sealed	80 °C	8.1 V	7.5 W	3	10.59 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 7.5W @ 25°C 3.9 A 80°C
