09330240502

Active

HARTING Technology Group

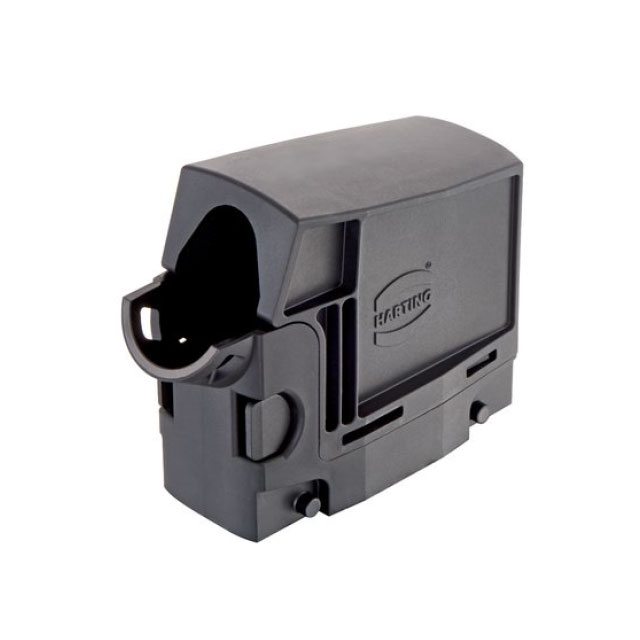

HAN-ECO MODULAR 24B SNAP HOOD SI

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 24B SNAP HOOD SI

Technical Specifications

Parameters and characteristics for this part

Specification	09330240502

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	121 mm
Size / Dimension [x]	4.764 "
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	111 mm
Size / Dimension [z]	4.37 in
Style	Side Entry

Part	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Material	Lock Location	Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Style
HARTING Technology Group 09330240502	Black	125 °C	-40 °C	Hood	Polyamide (PA) Nylon Glass Filled	Locking Clip (2) on Base Bottom	24 B	111 mm	2.244 "	4.37 in	121 mm	4.764 "	57 mm	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry 24B
