LQW31HN17NK03L

Obsolete

Murata Power Solutions Inc.

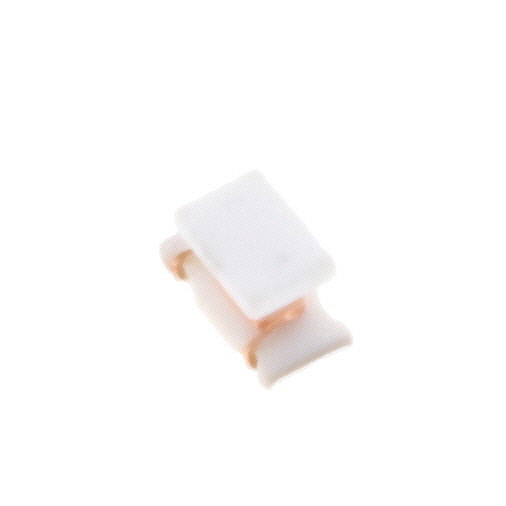

FIXED IND 17NH 650MA 37 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW31HN17NK03L

Obsolete

Murata Power Solutions Inc.

FIXED IND 17NH 650MA 37 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW31HN17NK03L

Current Rating (Amps)	650 mA
DC Resistance (DCR) [Max]	37 mOhm
Frequency - Self Resonant	1 GHz
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Inductance	17 nH
Inductance Frequency - Test	100 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1206 (3216 Metric)
Q @ Freq	60, 436 MHz
Shielding	Unshielded
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Supplier Device Package	3216 Metric
Tolerance	10 %
Type	Wirewound

LQW31HN Series

Part	Frequency - Self Resonant	Current Rating (Amps)	Inductance Frequency - Test	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Q @ Freq	Shielding	Supplier Device Package	Supplier Device Package	Tolerance	Package / Case	DC Resistance (DCR) [Max]	DC Resistance (DCR)	Material - Core
Murata Power Solutions Inc. LQW31HN17NK03L	1 GHz	650 mA	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	17 nH	60 436 MHz	Unshielded	1206	3216 Metric	10 %	1206 (3216 Metric)	37 mOhm
Murata Power Solutions Inc. LQW31HN56NK03L	1 GHz	0.33 A	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	56 nH	60 436 MHz	Unshielded	1206	3216 Metric	10 %	1206 (3216 Metric)		140 mOhm
Murata Power Solutions Inc. LQW31HN84NK03L	1 GHz	0.24 A	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in		60 436 MHz	Unshielded	1206	3216 Metric	10 %	1206 (3216 Metric)	280 mOhm
Murata Power Solutions Inc. LQW31HN23NJ03L	1 GHz	590 mA	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	23 nH	60 436 MHz	Unshielded	1206	3216 Metric	5 %	1206 (3216 Metric)		46 mOhm	Non-Magnetic
Murata Power Solutions Inc. LQW31HNR10J03L	900 MHz	0.23 A	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	100 nH	60 436 MHz	Unshielded	1206	3216 Metric	5 %	1206 (3216 Metric)	300 mOhm		Non-Magnetic
Murata Power Solutions Inc. LQW31HN64NJ03L	1 GHz	0.29 A	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	64 nH	60 436 MHz	Unshielded	1206	3216 Metric	5 %	1206 (3216 Metric)		180 mOhm
Murata Power Solutions Inc. LQW31HN64NK03L	1 GHz	0.29 A	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	64 nH	60 436 MHz	Unshielded	1206	3216 Metric	10 %	1206 (3216 Metric)		180 mOhm
Murata Power Solutions Inc. LQW31HN17NJ03L	1 GHz	650 mA	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	17 nH	60 436 MHz	Unshielded	1206	3216 Metric	5 %	1206 (3216 Metric)	37 mOhm
Murata Power Solutions Inc. LQW31HN15NK03L	1 GHz	0.68 A	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	14.7 nH	60 436 MHz	Unshielded	1206	3216 Metric	10 %	1206 (3216 Metric)	35 mOhm
Murata Power Solutions Inc. LQW31HN56NJ03L	1 GHz	0.33 A	100 MHz	Wirewound	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	85 °C	-40 °C	2 mm	0.079 in	56 nH	60 436 MHz	Unshielded	1206	3216 Metric	5 %	1206 (3216 Metric)		140 mOhm	Non-Magnetic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LQW31HN Series

17 nH Unshielded Wirewound Inductor 650 mA 37mOhm Max 1206 (3216 Metric)
