B500C1500A

Active

Diotec Semiconductor

BRIDGE RECT 1P 1KV 1.8A 4-SIL

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1P 1KV 1.8A 4-SIL

Technical Specifications

Parameters and characteristics for this part

Specification	B500C1500A

Current - Average Rectified (Io)	1.8 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C

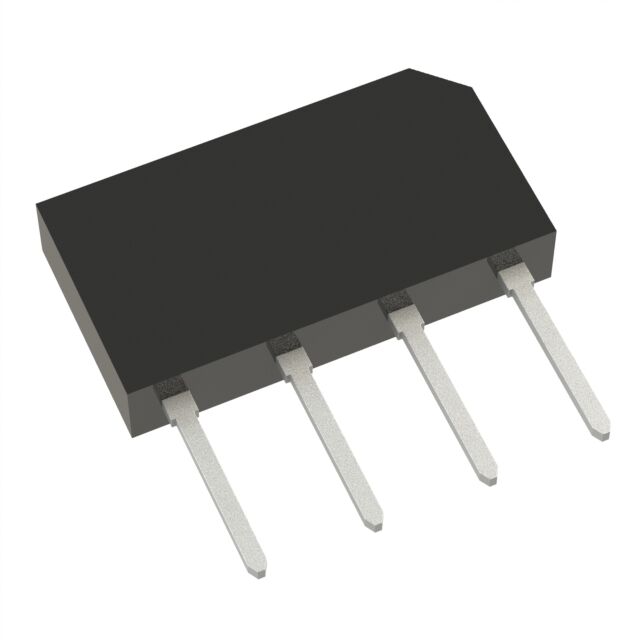

Package / Case	4-ESIP
Supplier Device Package	4-SIL
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Current - Average Rectified (Io)	Package / Case	Current - Reverse Leakage @ Vr	Diode Type	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]
Diotec Semiconductor B500C1500A	1.8 A	4-ESIP	5 µA	Single Phase	150 °C	-50 °C	Standard	4-SIL	Through Hole	1.1 V	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.64

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole 4-SIL
