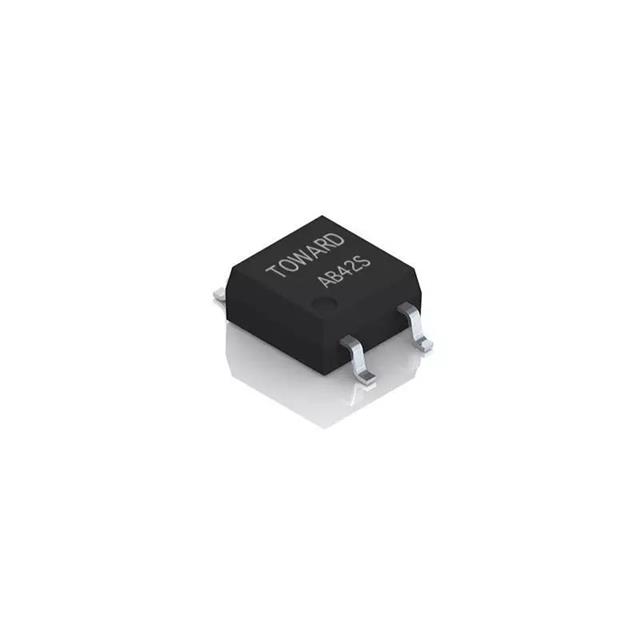

AB42S-R1
ActiveBright Toward Industrial Co., Ltd.
SOP-4, 60V / 5.0A, SSR RELAY SPS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB42S-R1
ActiveBright Toward Industrial Co., Ltd.
SOP-4, 60V / 5.0A, SSR RELAY SPS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB42S-R1 |
|---|---|
| Load Current | 2.5 A |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 64 mOhms |
| Output Type | DC, AC |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.37 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.50 | |
| 10 | $ 3.06 | |||
| 25 | $ 2.90 | |||
| 50 | $ 2.78 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.53 | |||
| 500 | $ 2.43 | |||
| Digi-Reel® | 1 | $ 3.50 | ||
| 10 | $ 3.06 | |||
| 25 | $ 2.90 | |||
| 50 | $ 2.78 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.53 | |||
| 500 | $ 2.43 | |||
| Tape & Reel (TR) | 1000 | $ 2.33 | ||
| 2000 | $ 2.24 | |||
| 3000 | $ 2.19 | |||
Description
General part information
AB42S Series
Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing
