F8025M24B-FSR-CC

Active

Mechatronics Bearing Group

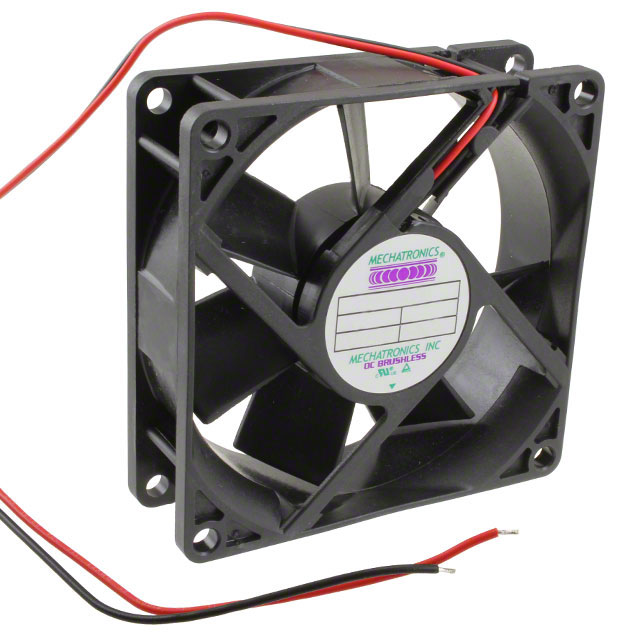

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet +1

F8025M24B-FSR-CC

Active

Mechatronics Bearing Group

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F8025M24B-FSR-CC

Air Flow	0.952 m³/min
Air Flow	34 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart, Locked Rotor Protection, Conformal Coating
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	29 dB(A)
RPM	2100 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	22.4 Pa
Static Pressure	0.09 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.174 lb
Weight	78.93 g
Width [y]	25 mm

F8025 Series

Part	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Noise	Width [y]	Termination	Current Rating (Amps)	Air Flow	Air Flow	Static Pressure	Static Pressure	RPM	Material - Blade	Approval Agency	Weight	Weight	Bearing Type	Features	Voltage - Rated
Mechatronics Bearing Group F8025E12B2-FHR	Tubeaxial	80 mm	80 mm	35 dB	25 mm	3 Wire Leads	0.24 A	1.29 mł/min	46 CFM	0.21 in H2O	52.3 Pa	3600 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.182 lb	82.55 g	Ball	Locked Rotor Sensor Thermal Overload Protector (TOP)	12 VDC
Mechatronics Bearing Group F8025E05B1-FHR	Tubeaxial	80 mm	80 mm	35 dB	25 mm	3 Wire Leads		1.29 mł/min	46 CFM	0.21 in H2O	52.3 Pa	3600 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.182 lb	82.55 g	Ball	Speed Sensor (Tach) Thermal Overload Protector (TOP)	5 V
Mechatronics Bearing Group F8025M12B-FSR	Tubeaxial	80 mm	80 mm	29 dB(A)	25 mm	2 Wire Leads	120 mA	0.952 m³/min	34 CFM	0.09 in H2O	22.4 Pa	2100 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.174 lb	78.93 g	Ball	Auto Restart Locked Rotor Protection	12 VDC
Mechatronics Bearing Group F8025H12B2-FHR	Tubeaxial	80 mm	80 mm	32 dB	25 mm	3 Wire Leads	0.145 A	1.12 mł/min	40 CFM	0.17 in H2O	42.3 Pa	3200 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.182 lb	82.55 g	Ball	Locked Rotor Sensor Thermal Overload Protector (TOP)	12 VDC
Mechatronics Bearing Group F8025X12B1-FHR	Tubeaxial	80 mm	80 mm	39 dB(A)	25 mm	3 Wire Leads	480 mA	1.48 mł/min	53 CFM	0.26 in H2O	64.8 Pa	4200 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.182 lb	82.55 g	Ball	Speed Sensor (Tach) Thermal Overload Protector (TOP)	12 VDC
Mechatronics Bearing Group F8025H24B-FSR-L2	Tubeaxial	80 mm	80 mm	29 dB(A)	25 mm	2 Wire Leads	0.09 A	1.09 m³/min	39 CFM	0.12 in H2O	29.9 Pa	2400 RPM		CE cUL TUV UL	0.174 lb	78.93 g	Ball	Auto Restart Locked Rotor Protection	24 VDC
Mechatronics Bearing Group F8025H24B-FHR	Tubeaxial	80 mm	80 mm	32 dB	25 mm	2 Wire Leads	0.09 A	1.12 mł/min	40 CFM	0.17 in H2O	42.3 Pa	3200 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.182 lb	82.55 g	Ball	Thermal Overload Protector (TOP)	24 VDC
Mechatronics Bearing Group F8025M12B-RSR	Tubeaxial	80 mm	80 mm	29 dB(A)	25 mm	2 Wire Leads	120 mA	0.952 m³/min	34 CFM	0.09 in H2O	22.4 Pa	2100 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.174 lb	78.93 g	Ball	Auto Restart Locked Rotor Protection	12 VDC
Mechatronics Bearing Group F8025E12B1-FSR	Tubeaxial	80 mm	80 mm	32 dB	25 mm	3 Wire Leads	0.24 A	1.29 mł/min	46 CFM			2800 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.174 lb	78.93 g	Ball	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	12 VDC
Mechatronics Bearing Group F8025M24B-FSR-CC	Tubeaxial	80 mm	80 mm	29 dB(A)	25 mm	2 Wire Leads		0.952 m³/min	34 CFM	0.09 in H2O	22.4 Pa	2100 RPM	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	0.174 lb	78.93 g	Ball	Auto Restart Conformal Coating Locked Rotor Protection	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.21

Description

General part information

F8025 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 34.0 CFM (0.952m³/min) 2 Wire Leads
