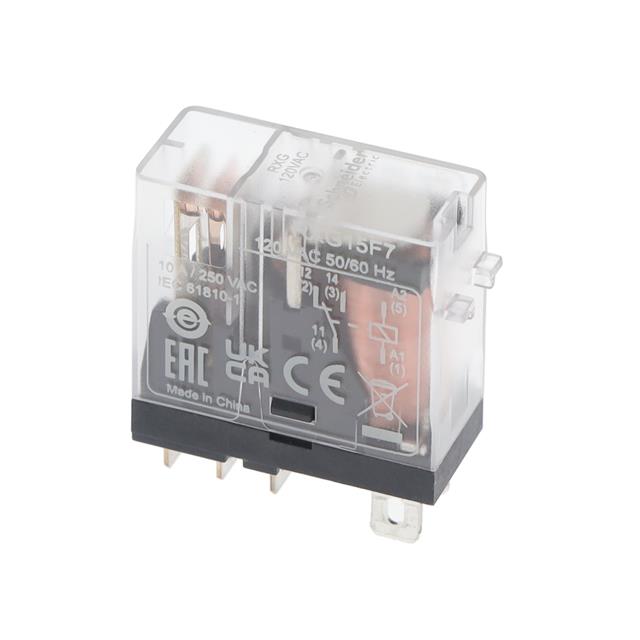

RXG15F7

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 1CO 10A@250VAC 120VAC COIL

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 1CO 10A@250VAC 120VAC COIL

Technical Specifications

Parameters and characteristics for this part

Specification	RXG15F7

Approval Agency	UL, CE, DNV-GL, EAC, CSA
Coil Current	19 mA
Coil Insulation	Class F
Coil Resistance	6.3 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	10 A
Load - Max Switching	2500 VA, 300 W
Mounting Type	Socketable
Must Operate Voltage	96 VAC
Must Release Voltage	36 VAC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

Part	Relay Type	Termination Style	Contact Material	Coil Voltage	Release Time	Coil Type	Operate Time	Contact Rating (Current)	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Must Operate Voltage	Coil Resistance	Must Release Voltage	Coil Current	Switching Voltage [Max]	Approval Agency	Load - Max Switching	Coil Insulation
SQUARE D BY SCHNEIDER ELECTRIC RXG15F7	General Purpose	Plug In	Silver Tin Oxide Indium Oxide (AgSnOInO)	120 VAC	20 ms	Non Latching	20 ms	10 A	SPDT (1 Form C)	-40 °C	70 °C	Socketable	96 VAC	6.3 kOhms	36 VAC	19 mA	30 VDC 250 VAC	CE CSA DNV-GL EAC UL	300 W 2500 VA	Class F
SQUARE D BY SCHNEIDER ELECTRIC RXG15JD	General Purpose	Plug In	Silver Tin Oxide Indium Oxide (AgSnOInO)	12 VDC	20 ms	Non Latching	20 ms	10 A	SPDT (1 Form C)	-40 °C	70 °C	Socketable			1.2 VDC		30 VDC 250 VAC	CE CSA DNV-GL EAC UL	300 W 2500 VA
SQUARE D BY SCHNEIDER ELECTRIC RXG15BD	General Purpose	Plug In	Silver Tin Oxide Indium Oxide (AgSnOInO)	24 VDC	20 ms	Non Latching	20 ms	10 A	SPDT (1 Form C)	-40 °C	70 °C	Socketable	19.2 VDC		2.4 VDC		30 VDC 250 VAC	CE CSA DNV-GL EAC UL	300 W 2500 VA
SQUARE D BY SCHNEIDER ELECTRIC RXG15P7	General Purpose	Plug In	Silver Tin Oxide Indium Oxide (AgSnOInO)	230 VAC	20 ms	Non Latching	20 ms	10 A	SPDT (1 Form C)	-40 °C	70 °C	Socketable	184 VAC		69 VAC		30 VDC 250 VAC	CE CSA DNV-GL EAC UL	300 W 2500 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 120VAC Coil Socketable
