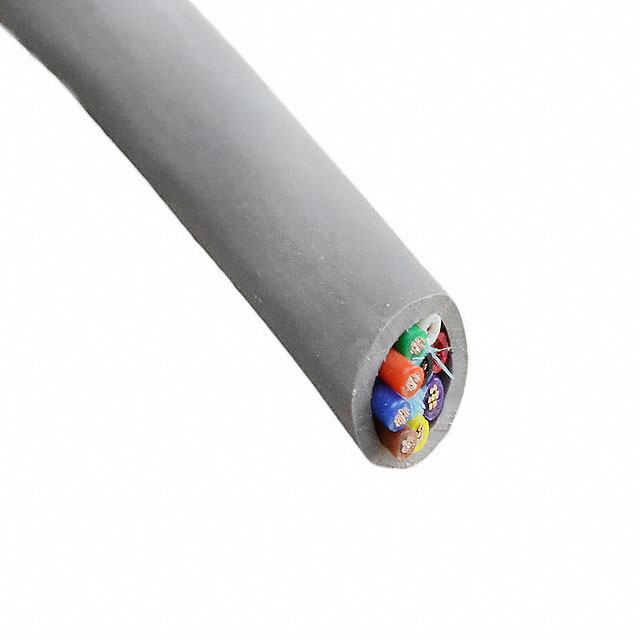

M2444 SL001

Active

ALPHA WIRE

CABLE 9COND 24AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 9COND 24AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M2444 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.25 "
Jacket (Insulation) Diameter [diameter]	6.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Type	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket Color	Jacket (Insulation) Material	Conductor Material	Wire Gauge	Cable Type	Shield Material	Number of Conductors	Ratings	Shield Coverage	Length	Length
ALPHA WIRE M2444 SL005	Braid Foil	30.5 m	100 ft	0.25 "	6.35 mm	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	-20 C	80 C	32 AWG	7	300 V	Slate	Poly-Vinyl Chloride (PVC)	Copper Tinned	24 AWG	Multi-Conductor	Aluminum Copper Tinned	9	UL Style 2464	65 % 100 %
ALPHA WIRE M2444 SL001	Braid Foil			0.25 "	6.35 mm	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	-20 C	80 C	32 AWG	7	300 V	Slate	Poly-Vinyl Chloride (PVC)	Copper Tinned	24 AWG	Multi-Conductor	Aluminum Copper Tinned	9	UL Style 2464	65 % 100 %	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.02

General part information

9 Conductor Multi-Conductor Cable Slate 24 AWG Foil, Braid 1000.0' (304.8m)

Technical documentation and resources

No documents available
