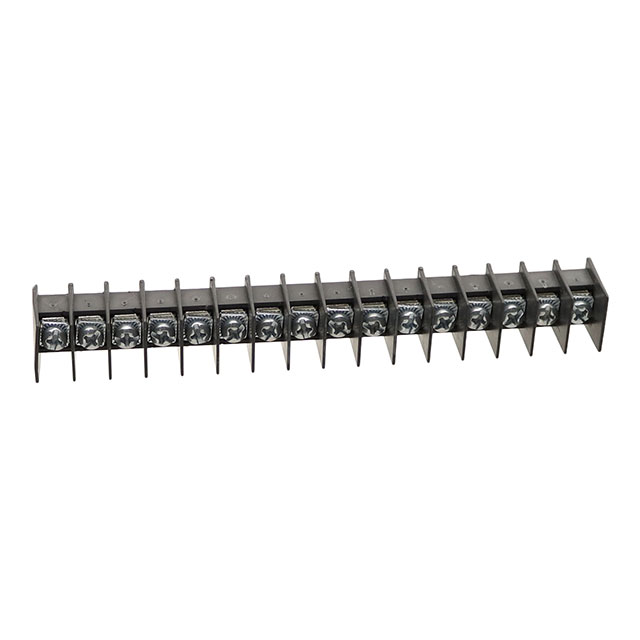

325111-16-0

Active

Curtis Industries

CONN BARRIER STRP 16CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

325111-16-0

Active

Curtis Industries

CONN BARRIER STRP 16CIRC 0.325"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325111-16-0

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	15 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	16
Number of Rows	1
Number of Wire Entries	16
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325111 Series

Part	Terminal Block Type	Pitch [x]	Pitch [x]	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Number of Circuits	Bottom Termination	Voltage Rating	Barrier Type	Material - Insulation	Operating Temperature	Top Termination	Mounting Type	Material Flammability Rating	Number of Rows	Number of Wire Entries [custom]
Curtis Industries 325111-11-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	11	11	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1
Curtis Industries 325111-19-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	19	19	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1
Curtis Industries 325111-14-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	14	14	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1
Curtis Industries 325111-16-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	16	16	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1
Curtis Industries 325111-25-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	25	25	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1
Curtis Industries 325111-17-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	17	17	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1
Curtis Industries 325111-21-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	21	21	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1
Curtis Industries 325111-23-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG		23	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1	23
Curtis Industries 325111-20-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	20	20	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1
Curtis Industries 325111-12-0	Barrier Block	8.26 mm	0.325 in	15 A	14 AWG	22 AWG	12	12	PC Pin	300 VDC	2 Wall (Dual)	Polypropylene (PP)	105 C	Screws	Through Hole	UL94 V-0	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.31
		10	$ 4.98
		30	$ 4.74
		50	$ 4.30
		100	$ 4.28

Description

General part information

325111 Series

16 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
