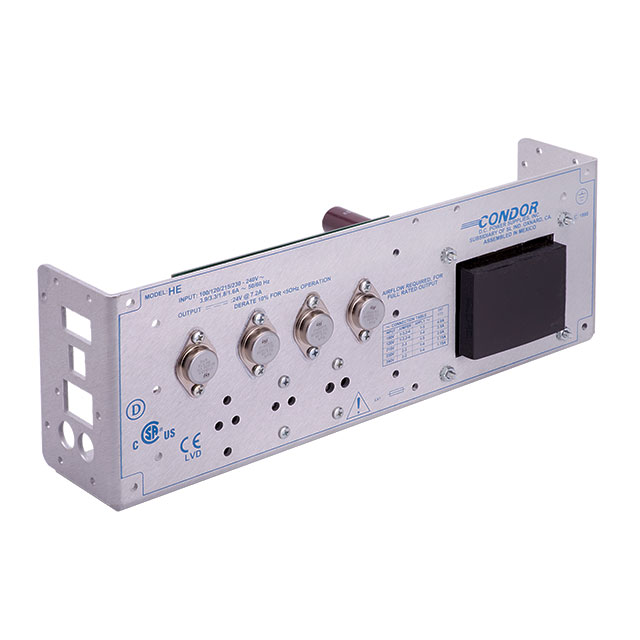

HE24-7.2-A+G

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 173W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 173W

Technical Specifications

Parameters and characteristics for this part

Specification	HE24-7.2-A+G

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	7.2 A
Efficiency	60 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	173 W
Size / Dimension [x]	335.6 mm
Size / Dimension [x]	14 in
Size / Dimension [y]	4.88 in
Size / Dimension [y]	124 mm
Size / Dimension [z]	69.8 mm
Size / Dimension [z]	2.75 in
Type	Linear
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	24 V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Current - Output 1	Type	Voltage - Input [Max]	Voltage - Input [Min]	Features	Approval Agency	Mounting Type	Voltage - Output 1	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency
SL POWER / Advanced Energy HE24-7.2-A+G	69.8 mm	335.6 mm	2.75 in	14 in	4.88 in	124 mm	ITE (Commercial)	7.2 A	Linear	240 VAC	100 VAC	Adjustable Output Remote Sense Universal Input	CE cURus TUV	Chassis Mount	24 V	1	173 W	70 °C	0 °C	60 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear AC DC Converters 1 Output 24V 100 ~ 240 VAC Input
