HDF-R15-113L461

Active

MH Connectors

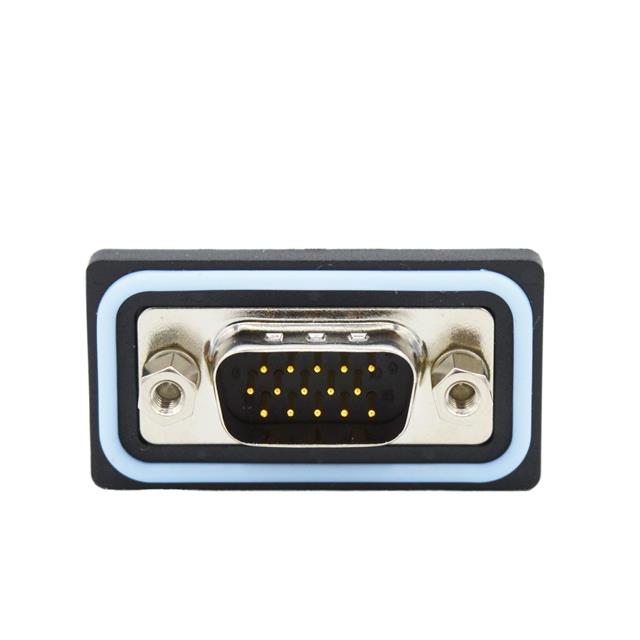

CONN D-SUB HD PLUG 15P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDF-R15-113L461

Active

MH Connectors

CONN D-SUB HD PLUG 15P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDF-R15-113L461

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

HDF-R15 Series

Part	Contact Finish Thickness	Dielectric Material	Contact Type	Shell Material, Finish	Contact Material	Current Rating (Amps)	Contact Finish	Number of Positions	Features	Mounting Type	Number of Rows	Termination	Connector Style	Ingress Protection	Connector Type	Flange Feature	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness
MH Connectors HDF-R15-113L461	Flash	Polybutylene Terephthalate (PBT)	Signal	Nickel Plated Steel	Brass	3 A	Gold	15	Board Lock Grounding Indents Mounting Brackets	Panel Mount Right Angle Through Hole	3	Solder	D-Sub High Density	IP67 - Dust Tight Waterproof	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	-25 °C	85 °C	Black	DE E	1	High Density
MH Connectors HDF-R15-113L011	Flash	Polybutylene Terephthalate (PBT)	Signal	Nickel Plated Steel	Brass	3 A	Gold	15	Grounding Indents	Panel Mount Right Angle Through Hole	3	Solder	D-Sub High Density	IP67 - Dust Tight Waterproof	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	-25 °C	85 °C	Black	DE E	1	High Density
MH Connectors HDF-R15-213L461	Flash	Polybutylene Terephthalate (PBT)	Signal	Nickel Plated Steel	Brass	3 A	Gold	15	Board Lock Mounting Brackets	Panel Mount Right Angle Through Hole	3	Solder	D-Sub High Density	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0	-25 °C	85 °C	Black	DE E	1	High Density
MH Connectors HDF-R15-213L011	Flash	Polybutylene Terephthalate (PBT)	Signal	Nickel Plated Steel	Brass	3 A	Gold	15		Panel Mount Right Angle Through Hole	3	Solder	D-Sub High Density	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0	-25 °C	85 °C	Black	DE E	1	High Density
MH Connectors HDF-R15-213L012		Polybutylene Terephthalate (PBT)	Signal	Nickel Plated Steel	Brass	3 A	Gold	15		Panel Mount Right Angle Through Hole	3	Solder	D-Sub High Density	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0	-25 °C	85 °C	Black	DE E	1	High Density	0.76 Ám	30 Áin
MH Connectors HDF-R15-113L012		Polybutylene Terephthalate (PBT)	Signal	Nickel Plated Steel	Brass	3 A	Gold	15	Grounding Indents	Panel Mount Right Angle Through Hole	3	Solder	D-Sub High Density	IP67 - Dust Tight Waterproof	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	-25 °C	85 °C	Black	DE E	1	High Density	0.76 Ám	30 Áin
MH Connectors HDF-R15-213L462		Polybutylene Terephthalate (PBT)	Signal	Nickel Plated Steel	Brass	3 A	Gold	15	Board Lock Mounting Brackets	Panel Mount Right Angle Through Hole	3	Solder	D-Sub High Density	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0	-25 °C	85 °C	Black	DE E	1	High Density	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.80
		10	$ 14.47
		25	$ 13.10
		40	$ 12.45
		80	$ 11.58
		230	$ 10.41
		440	$ 9.77
		945	$ 9.09

Description

General part information

HDF-R15 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
