SIM535-A03-R22ALL-01

Obsolete

E2IP Technologies Inc.

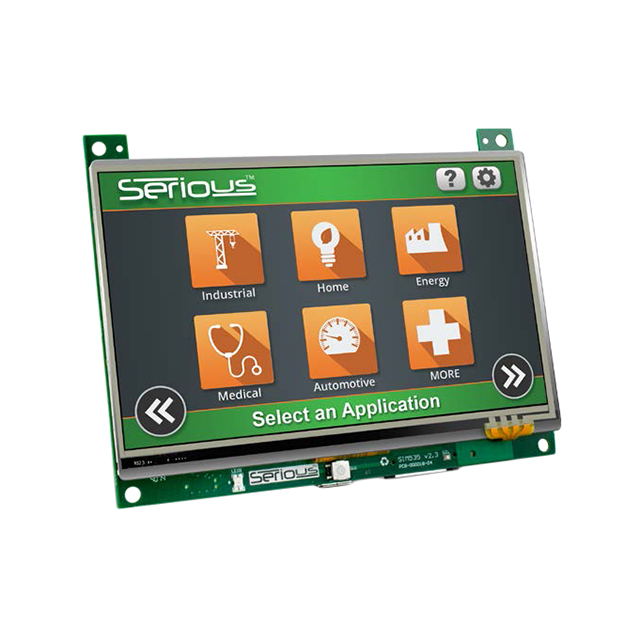

LCD MODULE 7.0" 800X480X24BPP TF

Search across all available documentation for this part.

Obsolete

E2IP Technologies Inc.

LCD MODULE 7.0" 800X480X24BPP TF

Technical Specifications

Parameters and characteristics for this part

Part	Diagonal Screen Size	Diagonal Screen Size	Backlight	Interface	Touchscreen	Display Mode	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Display Type	Dot Pitch [y]	Dot Pitch [x]	Graphics Color	Viewing Area [x]	Viewing Area [y]	Primary Attributes	Primary Attributes [x]	Primary Attributes	Primary Attributes [y]	Embedded	Embedded	Secondary Attributes	Type	Function	Supplied Contents	Utilized IC / Part
E2IP Technologies Inc. SIM535-A03-R22ALL-01	177.8 mm	7 in	LED - White	I2C SPI UART	Resistive	Transmissive	WVGA	800	480	TFT - Color	0.18 mm	0.19 mm	Blue Green Red	154.08 mm	85.92 mm
E2IP Technologies Inc. SIM535-A01-DEV-01																WVGA	800	7 in	480	32-Bit MCU		Resistive 4-Wire Touch Screen	Display	LCD Touch Screen	Board(s) Cable(s) Power Supply	SIM535

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI, UART 7" (177.80mm) 800 x 480 (WVGA)

Technical documentation and resources

No documents available
